I got my Unicorn (ZHL) Ropewalk up and running: here's my first impressions plus video.

rtwpsom2 said:
I got some of Gutermann's Mara 15 in this week so I went whole hog and tried out a 6 strand rope with it, running left hand. Results are...rope?View attachment 358277

I think it might have been better as a five strand, but oh well. I am going to try a three strand right hand rope next.
Click to expand...
You need a core strand.

About the laying direction of rope I like to invite you to read the following :)

Everything about rope direction of lay

Everything about rope direction of lay

For years I was subject to the "myth" that the shrouds of English and American ships (which I had dealt with) are usually left handed. Don't think that is correct. Left-hand laid is only cable laid ro
forum.dubz-modelling-world.com

The Myth of left-handed hawser rope [in Ship Modelling]

The Myth of left-handed hawser rope [in Ship Modelling]

ABSTRACT There seems to be much confusion amongst model-makers over the ways in which rope was laid for various functions in a ship. The three general ways (hawser-laid, shroud-laid and cable-laid) ar
forum.dubz-modelling-world.com

cheers Dirk

So these chinese designed a machine to make rope with more then 3 strands without core? Then they don't understand the process of making rope or they forget to copy the machine correct. Even a 4 strand rope needs a core. Without, the strands will not lay nice next to eachother. Hope you succeed to find a way to add a core strand.

Steef66 said:
So these chinese designed a machine to make rope with more then 3 strands without core? Then they don't understand the process of making rope or they forget to copy the machine correct. Even a 4 strand rope needs a core. Without, the strands will not lay nice next to eachother. Hope you succeed to find a way to add a core strand.
Click to expand...
Hello, just curious but what ropes require a core? Is it for the anchors?

Jack Sparrow said:
Hello, just curious but what ropes require a core? Is it for the anchors?
Click to expand...
See post #24 of Dirk or look here

Make your rope on a rope walk

I did a lot of research on how to make rope on a rope walk and build my own rope walk. I love to share my experience with you. The quality of the rope delivered in your kit is not always of high quality. Fluffy, badly made so that you can better use it to tie up your old paper than to rig your...
shipsofscale.com

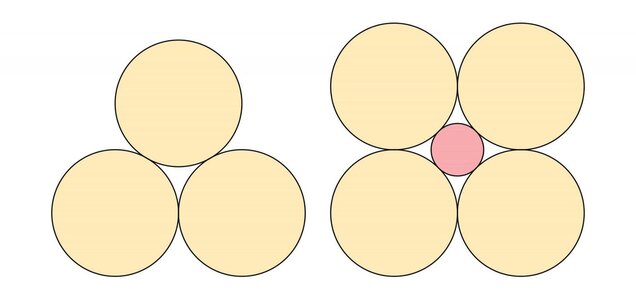

The core is for rope with more strands then 3 to keep the shape round. Shroud laid got a core

rtwpsom2 said:
Ah, okay, good, I thought you had replaced the existing clamps. In that case, yes, thrust bearings would help. I'm going to see if I can find a soda can to mutilate into a shim and see how that goes.
Click to expand...
I am starting to think that maybe a gob or two of epoxy may just do the trick. I have to think about this a little more...

I am really thinking about replacing the shaft with something a little bit more well thought out. Bored through at least partially for a core, longer to fit through the other side of the main box. Maybe threaded on the left end for a to keep the bearing from moving.

rtwpsom2 said:
I am really thinking about replacing the shaft with something a little bit more well thought out. Bored through at least partially for a core, longer to fit through the other side of the main box. Maybe threaded on the left end for a to keep the bearing from moving.
Click to expand...
I wonder if you can buy something like that already made? I don't think I am going in that direction because I don't know if I will need a core strand for any of the projects that I will doing. Please correct me if I am wrong but I am thinking only anchor ropes use a core strand?

Jack Sparrow said:
Please correct me if I am wrong but I am thinking only anchor ropes use a core strand?
Click to expand...

You are wrong :) You will usually never need a four strand rope with core. No one will see the difference to a simple 3 strand hawser besides it was very very very very rarely used. And btw, why not just reading what I posted? It will answer all questions about rope ;-)

Dirk

Last edited:
rtwpsom2 said:
This is why I am looking for Gutermann E-121 thread. Due to it's minimal twist you can use it to make right handed rope with this machine very easily.
Click to expand...

I found a shop in Belgium that sells e121 thread (thread="garen" in Dutch). Maybe something of interest, but 10000 meter.. enough to last a lifetime of ship modeling.

Overlockgaren E121 n°240 (p.1x10.000m) | Verachtert Store

100% polyester, textuurgaren, Open kleurkaart voor overzicht.
webshop.verachtert.be webshop.verachtert.be

Dubz Modelling World said:
You are wrong. You will usually never need a four strand rope with core. No one will see the difference to a simple 3 strand hawser besides it was very very very very rarely used. And btw, why not just reading what I posted? It will answer all questions about rope ;-)

Dirk
Click to expand...
Oftentimes, there are so many messages that it is hard to figure out what is relevant to my questions. But thanks for the response.
