Vertical Frame Thickness?

[StuWicks]

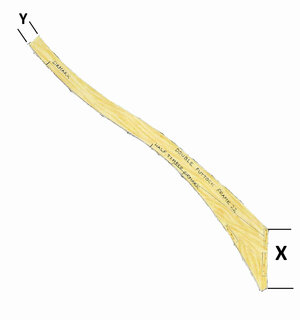

Hi, I have built 3 plank on bulkhead models, 2 from scratch, and now I want to embark on a full frame Admiralty style model of HMS Tyger. I am using the beautiful book by Richard Endsor, "The Master Shipwright's Secrets" and I understand how to derive all the dimensions i need except the vertical thickness for each frame and the taper from the keel (X) to the top (Y), as indicated on the attached diagram with an example Futtock Frame. Can anyone advise me: is there a source/rule or do I just judge it by eye? Thanks



[Y.T.]

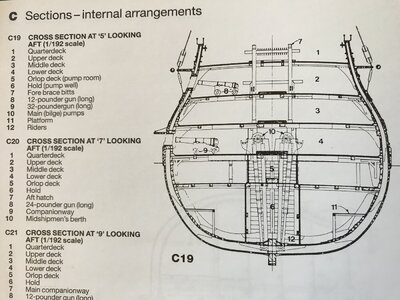

You should have sections drawings in your book as one below. Scale up dimensions you look for using indicated scale (1/192 in my example) and a ruler marked in millimetres.



[StuWicks]

Thanks, should I assume the same ratio for every frame? It seems to me it varies depending on the frame number, especially towards the ends.



[Dave Stevens (Lumberyard)]

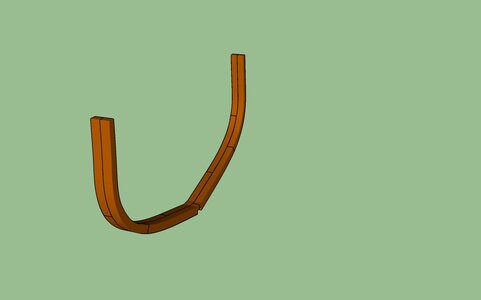

your X measurement is just the foot of a half frame you need a full frame to get the measurements



[Dave Stevens (Lumberyard)]

i assume you are looking for the tapper from the keel up to the top timber

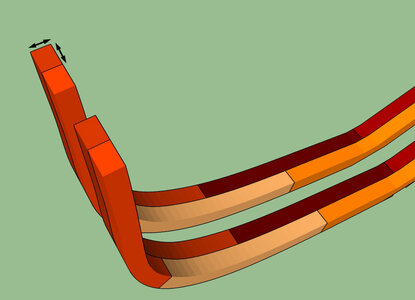

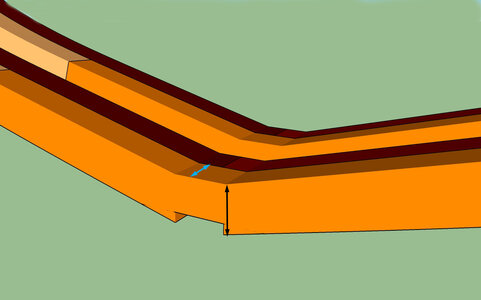

there are established dimensions which will give you the shape starting at the floor the black arrow is the molded dimension and we will call it 11 inches

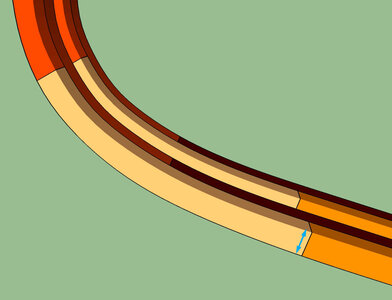

the blue arrow is the sided dimension or the thickness of the timber lets call that 9 inches

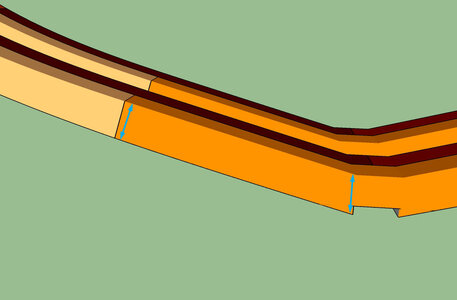

moving up the frame the next dimension will be the floor heads the blue arrow on the left and it is 7 inches

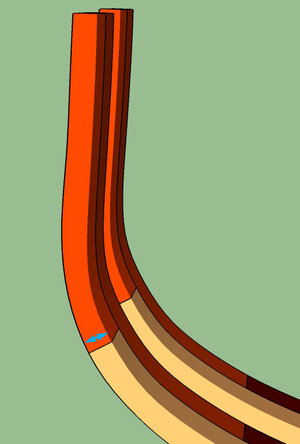

second futtock at the head 6 inches



top timber dimsnsion 5 inches



and final at the head 4 x 4



[Dave Stevens (Lumberyard)]

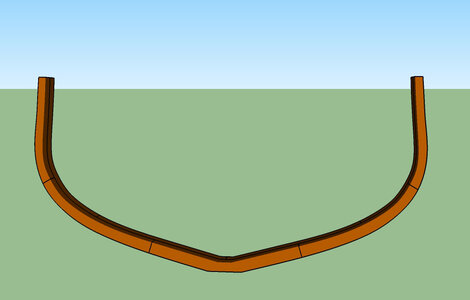

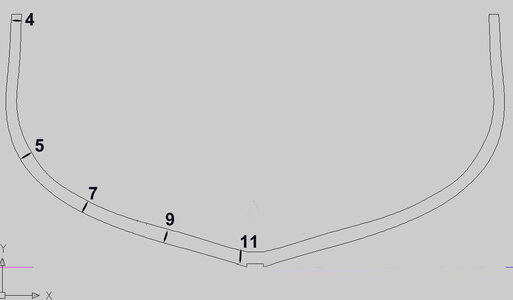

once you know the numbers you measure out from the frame shape and connect the dots. The inside shape is in the skill of the draftsman



[Dave Stevens (Lumberyard)]

and now you are wondering where these numbers come from,

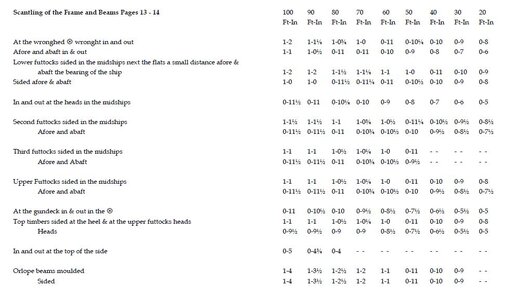

they are in the books and records of shipwrights and it looks like this the numbers at the top 100 to 20 is the size of the ship



[Dave Stevens (Lumberyard)]

but your topic says "thickness" or sided dimension what i just showed is the "molded" dimension

the thickness depends a lot on what ship it is and when and where it was built

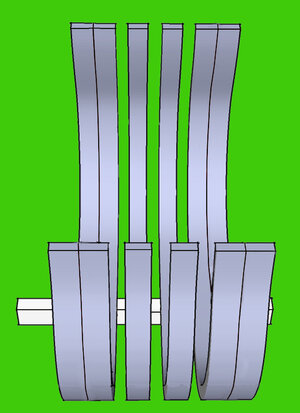

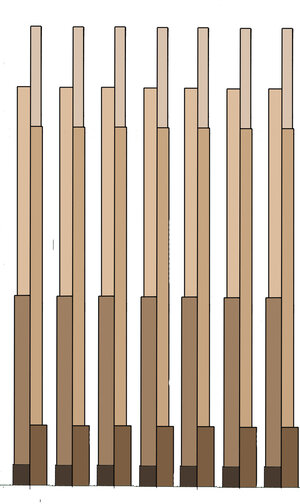

here are examples of the thickness you can see each futtock gets thinner this is strickly an older British style of framing. It was not used in North America or for that matter no other country built this way.

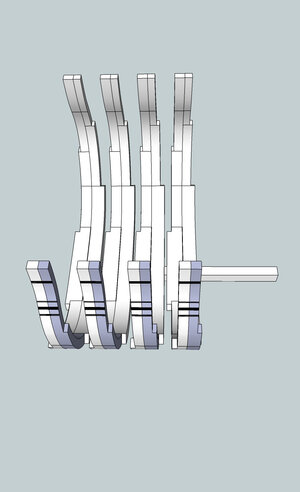

these are other style of British admiralty framing first is using double bends and filler pieces which were wedged between the inner and outer hull planking and fell out when the planking was removed

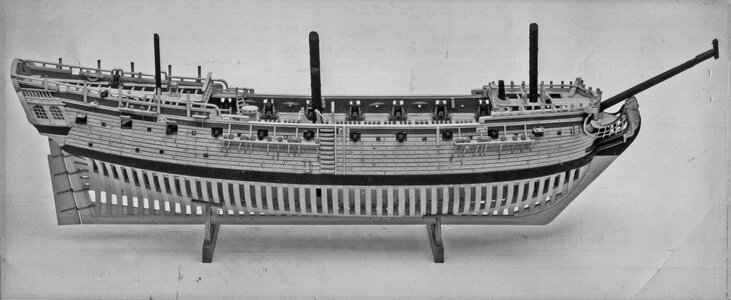

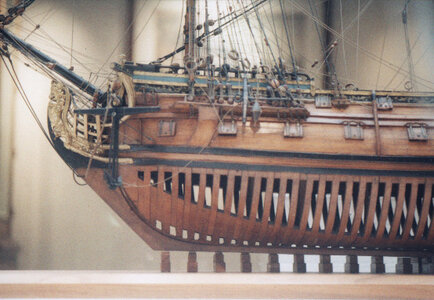

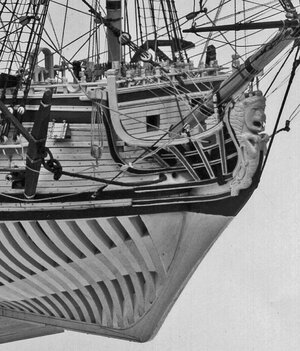

you will see this style of admiraly framing in models and it looks like this



[StuWicks]

Thank you Dave, the moulded dimension was exactly what I was looking for, and a very comprehensive answer. Much obliged.



[Dave Stevens (Lumberyard)]

Thank you Dave, the moulded dimension was exactly what I was looking for, and a very comprehensive answer. Much obliged.

if you need any more help post any questions i am glad to help you drawing out the frames.

go here for frame drawing
