Steam drifter'

[Yoshka]

looking for a plan of an OCEAN CLASS, STEEL SCREW STEAM DRIFTER of 1917/18 similar to this one.



[jbc77]

Taubman?

OCEAN CLASS, STEEL SCREW STEAM DRIFTER of 1917/18



[Uwek]

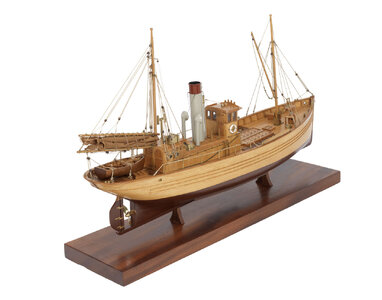

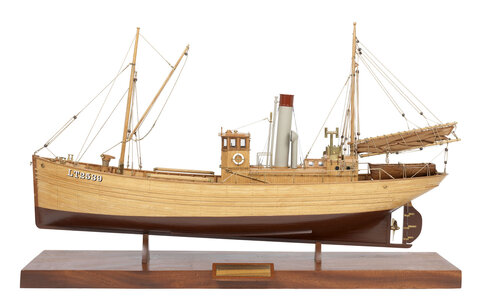

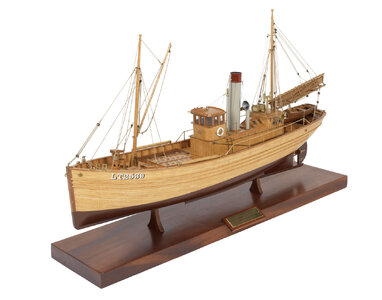

There is a very good model existing in the NMM

Fishing vessel; Drifter; North Sea drifter; Lowestoft herring boat | Royal Museums Greenwich

www.rmg.co.uk

Found also this web-page - maybe interesting for you

https://www.naval-history.net/WW1NavyBritishShips-Dittmar4APb.htm

Wreck of a Steam Drifter

Following on from my previous blog about the remains of the wherries at Newburn Bridge, I decided to investigate this wreck which is further upriver, although on the same (south) bank of the River...

heddonhistory.weebly.com

Maybe an interesting book:

'From Tree to Sea: The building of a wooden steam drifter' by Ted Frost (Terence Dalton Ltd, 1985).



[Uwek]

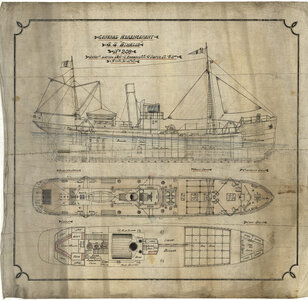

Just found, that the NMM has several contemporary original drawings

Maybe you contact them to get a copy of the original drawings? This is possible

BOX​

Box containing 64 rolled plans (Yard Nos between 207 and 313) for various steamships, trawlers and the following named vessels: Boyne Castle, Zena Dare, Athalia, Canarias, Baleares, Filipinas, Antillas, Porvenir, Wheatberry, Money Spinner and Cavallo.

4 plans for Boyne Castle No 207
3 plans for Zena Dare No 208
4 plans for Athalia No 209
1 plan for cargo vessel No 210
1 plan for steamship No 218
3 plans for Canarias No 221, Baleares No 222, Fillipinas No 223 and Antillias No 224
6 plans for Porvenir No 239
1 plan for trawlers No 241 & 242
2 plans for Trader No 247 and Llanely Trader No 248
4 plans for c\rgo vessel No 249
2 plans for cargo vessel No 262
1 plan for trawlers No 265 & 266
3 plans for trawlers, No 267 to 275
2 plans for Wheatberry No 272
3 plans for Stockforge No 273
3 plans for drifter No 276
4 plans for Nos 281 and 284
3 plans for Money Spinner No 289
2 plans for paddle steamers Nos 291 & 292
2 plans for Plodder No 302
4 plans for Cavallo No 303
5 plans for drag fins No 309 and 313

BOX | Royal Museums Greenwich

www.rmg.co.uk



[jbc77]

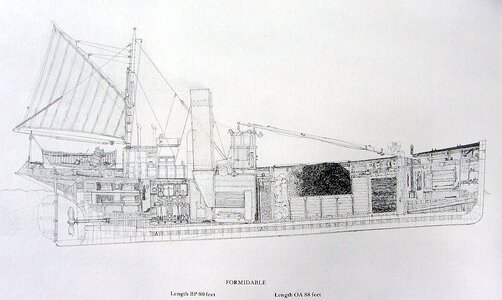

Uwek posted the arrangement elevation of the drifter “Formidable”. The boat was featured in the May 1993 issue of Model Boats magazine (copies currently available on eBay). Plans are available from Sarik Hobbies:
Formidable plans
There is a build log within this forum:
Formidable build log



[Stevedownunder]

looking for a plan of an OCEAN CLASS, STEEL SCREW STEAM DRIFTER of 1917/18 similar to this one.

View attachment 419869

Hi Yoshka,

It's a long shot but maybe it is worth trying the manufacturer of the 1/144 scale resin kit you have pictured, they must have had plans or at least may be happy to point you in the right direction.

https://www.britmodeller.com/forums...-ocean-class-steam-drifter-1917-neomega-1144/

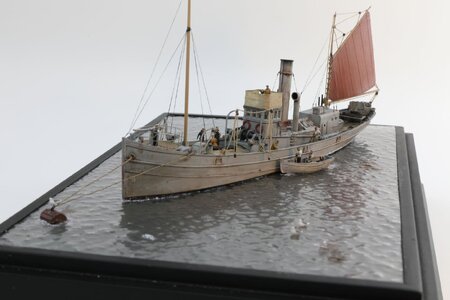

1/144th Ocean Class Steam Drifter 1917

A 1/144th scale resin and 3d printed kit with etch metal parts. This is a kit of the 86ft long WWI Royal Navy Ocean Class Steam Drifter design that

www.neomega-resin.com

Hope this helps.
Cheers,
Stephen.



[Raysven]

I Believe the NRG ran an series of articles on steam drifters, I think it is in the first 40 digital magazines



[Llaut Mallorquin]

I think there are no legal problems if you download this
http://freeshipplans.com/free-model-ship-plans/fishing-boat-plans/consul-pust-german-trawler/
My Cosul Pust on cardboard
https://shipsofscale.com/sosforums/threads/consul-pust-trawler.8199/
Have a good day



[Big Al]

looking for a plan of an OCEAN CLASS, STEEL SCREW STEAM DRIFTER of 1917/18 similar to this one.

View attachment 419869

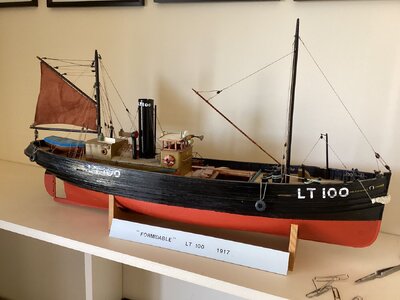

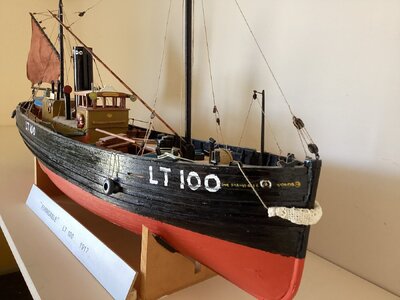

This is my scratch built model of drifter LT 100. It was built from plans and photos in the book ‘From Tree To Sea’ by Frost. I have very basic tools, that is scalpel and sand paper so it obviously isn’t perfect but I’m quite pleased with it.



[Uwek]

This is my scratch built model of drifter LT 100. It was built from plans and photos in the book ‘From Tree To Sea’ by Frost. I have very basic tools, that is scalpel and sand paper so it obviously isn’t perfect but I’m quite pleased with it.

View attachment 421519

View attachment 421520

Great looking model - Thanks for sharing with us
