Lookin very good, makes me want to buy this kit but I have a Pandora in my stash!
Modelship Dockyard - New Kit POB 1:72 HMS Pandora 1779 by Modelship Dockyard
- Thread starter Modelship Dockyard
- Start date
- Watchers 33
- Joined
- Dec 25, 2021
- Messages
- 75
- Points
- 113
- Joined
- Dec 25, 2021
- Messages
- 75
- Points
- 113

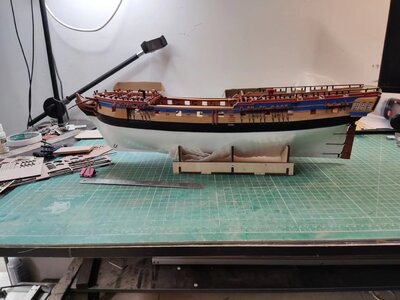

The testing of Pandora's hull has been completed. Next, we will start a one month rigging test
Last edited:
- Joined
- Dec 25, 2021
- Messages
- 75
- Points
- 113

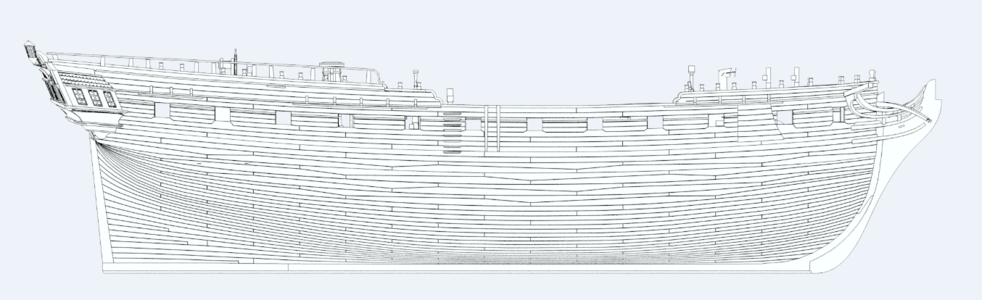

Planking is laser processing with very high accuracy
According to the feedback received by Hailing, we will provide 1:48 printing drawings for customers to print
Last edited:
- Joined
- Jul 27, 2021
- Messages
- 213
- Points
- 253
Very interesting development again
About the deck planking, you need to make sure that all three parts are from the same sheet of wood, have the same color! The color difference is very unpleasing. It's the same problem with the hoy.
And I again like to remind, that the knee is double tapered from aft to forward as well as from below upward right. It would be nice to have this in mind for the figure
cheers
Dirk
About the deck planking, you need to make sure that all three parts are from the same sheet of wood, have the same color! The color difference is very unpleasing. It's the same problem with the hoy.
And I again like to remind, that the knee is double tapered from aft to forward as well as from below upward right. It would be nice to have this in mind for the figure
New design - POF HMS Blandford 1720 in scale 1:48 by Modelship Dockyard
The timber is Africa pear guys
shipsofscale.com
cheers
Dirk
- Joined
- Oct 14, 2020
- Messages
- 223
- Points
- 298

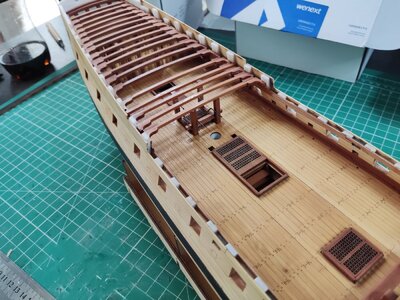

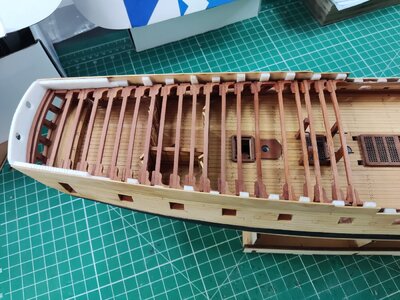

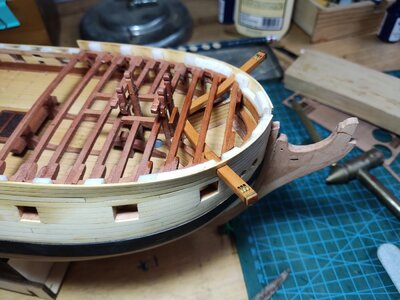

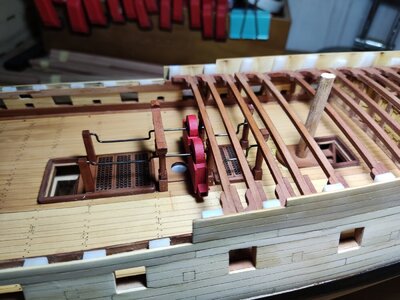

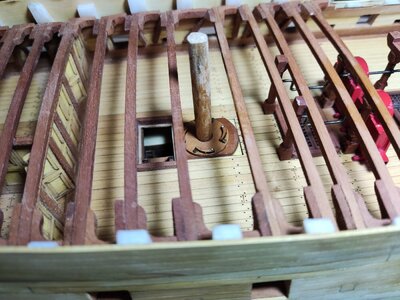

More gun deck fitting
- Joined
- Oct 14, 2020
- Messages
- 223
- Points
- 298
- Joined
- Oct 14, 2020
- Messages
- 223
- Points
- 298
Yes we will try to solve the deck issue, we used box wood in the pilot model, and turns out we can't solve the colour issue. We decided to use pear wood later on, the issue would be mitigated a bit that way. There might still be small colour differences, we will try to pick the sheets during production.Very interesting development again
About the deck planking, you need to make sure that all three parts are from the same sheet of wood, have the same color! The color difference is very unpleasing. It's the same problem with the hoy.
And I again like to remind, that the knee is double tapered from aft to forward as well as from below upward right. It would be nice to have this in mind for the figure
New design - POF HMS Blandford 1720 in scale 1:48 by Modelship Dockyard
The timber is Africa pear guysshipsofscale.com
cheers
Dirk

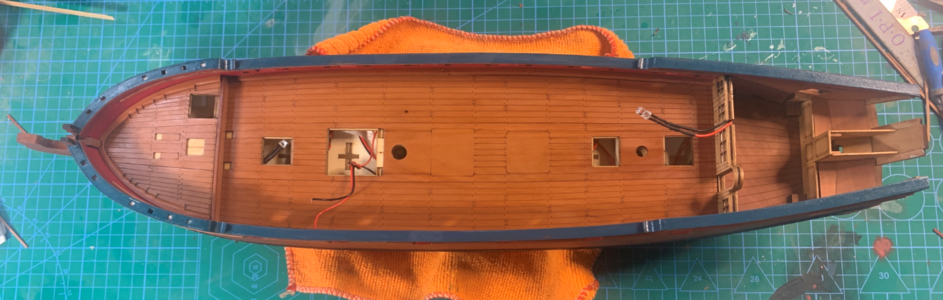

Greetings, Victor. Great progress on deck beams. The question that brought my attention was on the main deck. Does the deck come as a single sheet or multiple? The reason is I can see two distinct colors on board and starboard. Hope this is not the case and is just a visual impression (light shadow)
Looking very good

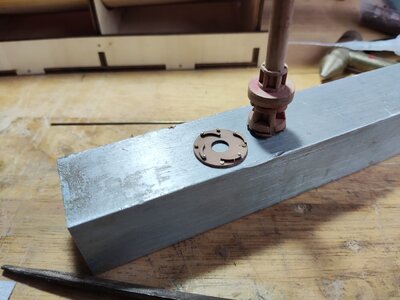

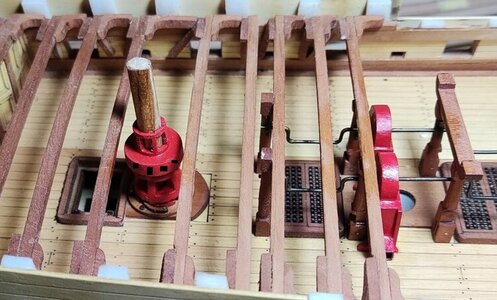

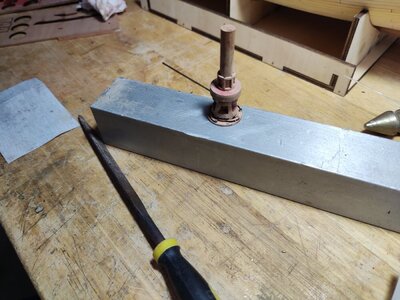

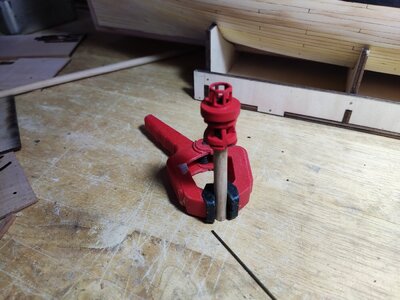

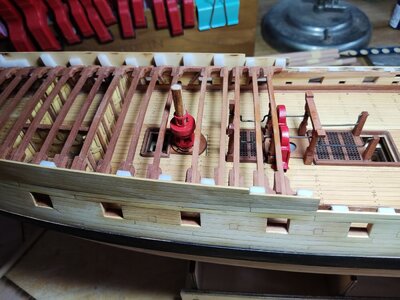

One small hint refering the capstan:
The Pandora had a double capstan which was possible to work with on both decks -
so also on the lower deck there should be the recesses for the pins (marked with black on your photo)
Looking at the plans I was already wondering, how they worked on the lower deck - seems, that they removed not only the companion ladder, but also the handles for the pumps

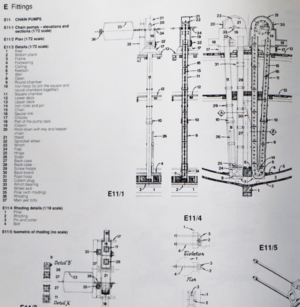

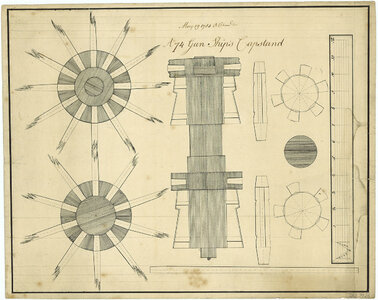

- excerpt from Syren drawing

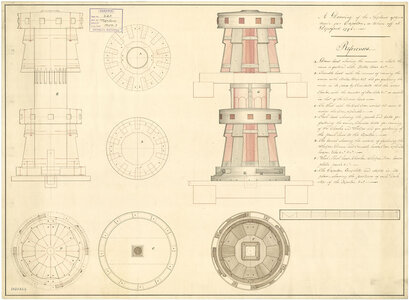

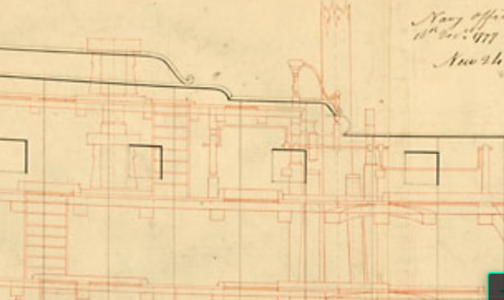

from Pandora Anatomy book

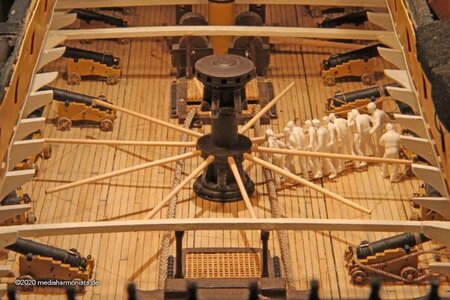

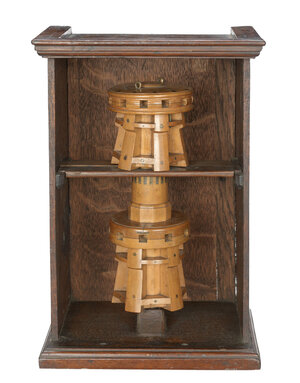

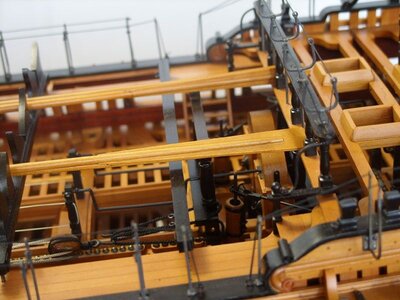

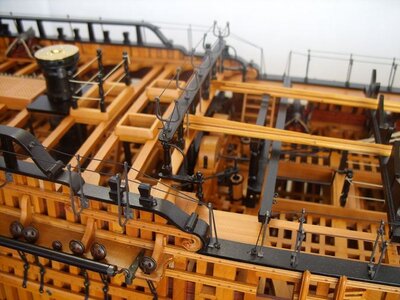

from @dafi to show the space needed when the capstan was in use (here HMS Victory)

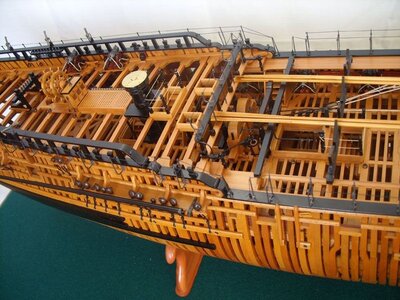

Do you know the outstanding model of the HMS Pandora by Narim Majgeldinov? - I have the impression, that he made the handles of the pumps only towards fore and not aft
One small hint refering the capstan:
The Pandora had a double capstan which was possible to work with on both decks -
so also on the lower deck there should be the recesses for the pins (marked with black on your photo)
Looking at the plans I was already wondering, how they worked on the lower deck - seems, that they removed not only the companion ladder, but also the handles for the pumps
- excerpt from Syren drawing
from Pandora Anatomy book
from @dafi to show the space needed when the capstan was in use (here HMS Victory)
Do you know the outstanding model of the HMS Pandora by Narim Majgeldinov? - I have the impression, that he made the handles of the pumps only towards fore and not aft
Model 24-Gun Frigate HMS «Pandora»
MS «Pandora» was a 24gun Sixth Rate built at Deptford in 1779. The Pandora is best known for her voyage to Tahiti which was undertaken to bring back the Bounty mutineers.
www.shipmodels.com.ua
- Joined
- Dec 25, 2021
- Messages
- 75
- Points
- 113
Yes, we also pay attention to this problem, but we still decide to provide all the parts in the original design drawing. As for the installation, it depends on each modeler
- Joined
- Dec 25, 2021
- Messages
- 75
- Points
- 113
For the convenience of packaging and transportation, the final deck is composed of two parts, but it is derived from the same raw material. I have a similar effect here. The deck below is composed of three parts separately
outstanding and beautiful details. I am sure this will be a pleasure to build.
- Joined
- Oct 14, 2020
- Messages
- 223
- Points
- 298
A bit update to Pandora folks,
It has been a while since the last update, we've been working on the riggings, instructions, and some other details.
The kit is now being released on SOS, you can check it here:
A open box by Donnie is also being made, you can check it here:
I will also continue post some updates about Pandora within a few days, including finished pilot model, more information abouot the kit, and maybe some other stuff. Thank you folks for the waiting!

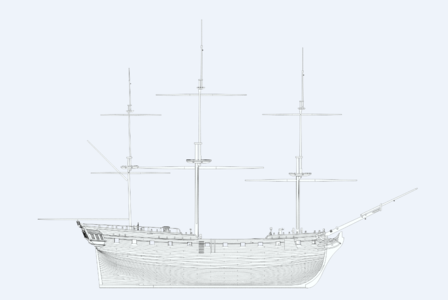

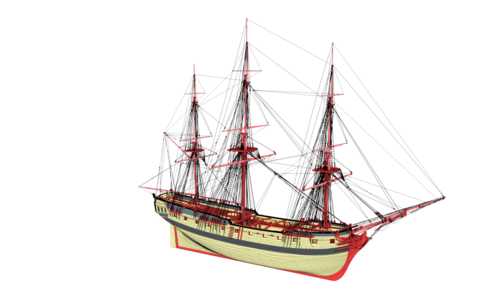

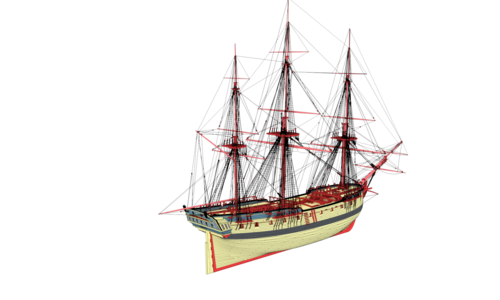

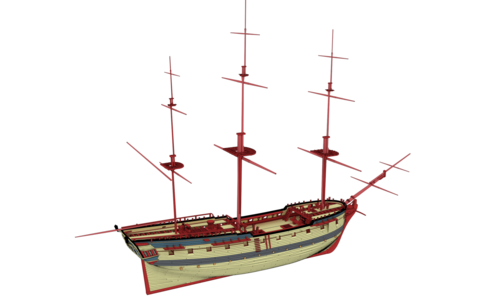

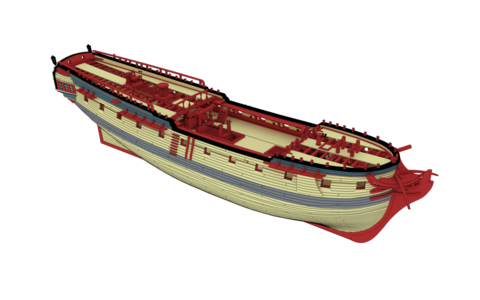

Two images of the final look of Pandora in 3D rendering:
It has been a while since the last update, we've been working on the riggings, instructions, and some other details.
The kit is now being released on SOS, you can check it here:
A open box by Donnie is also being made, you can check it here:
Kit review - HMS Pandora 1:72 by Modelship Dockyard
HMS Pandora Kit Review A "Modelship Dockyard Kit" Pandora was a 24-gun Porcupine-class(link to wiki) sixth-rate frigate of the Royal Navy, built in Deptford, in 1779. A brief introduction to Porcupine-class: PORCUPINE Class. (24 guns) John Williams's design of 1776, to which ten ships were...
shipsofscale.com
I will also continue post some updates about Pandora within a few days, including finished pilot model, more information abouot the kit, and maybe some other stuff. Thank you folks for the waiting!
Two images of the final look of Pandora in 3D rendering:
These renderings of the fully rigged model are looking very promising
- Joined
- Oct 14, 2020
- Messages
- 223
- Points
- 298

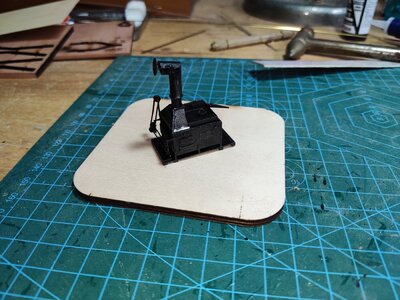

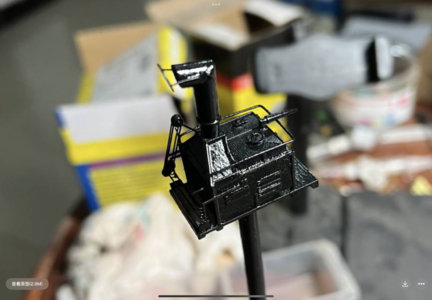

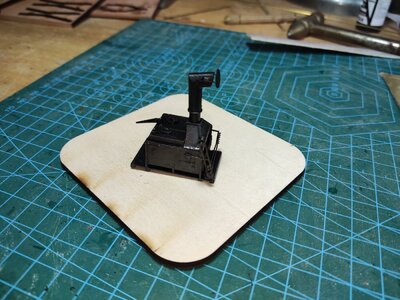

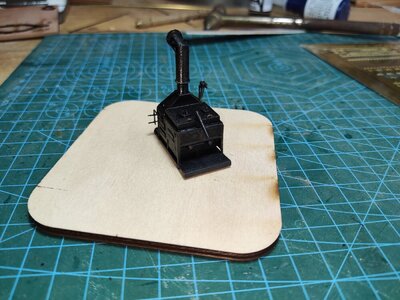

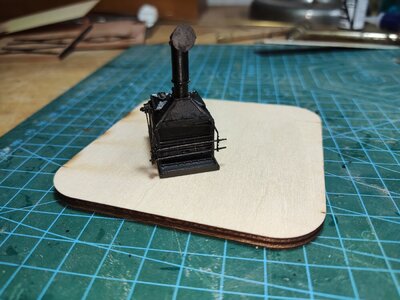

Pandora galley:

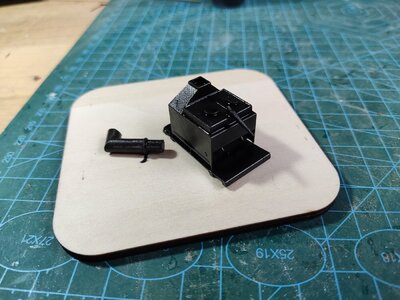

Another one made by a Chinese modeller:
Another one made by a Chinese modeller:
- Joined
- Oct 14, 2020
- Messages
- 223
- Points
- 298

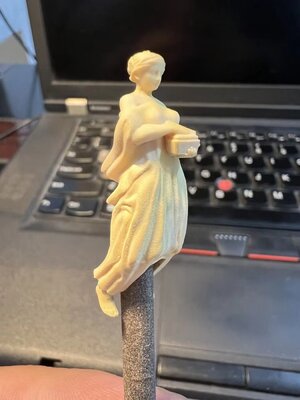

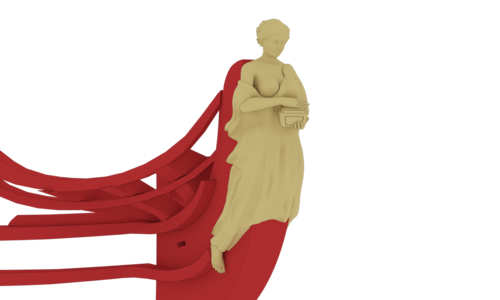

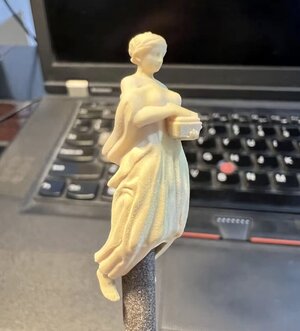

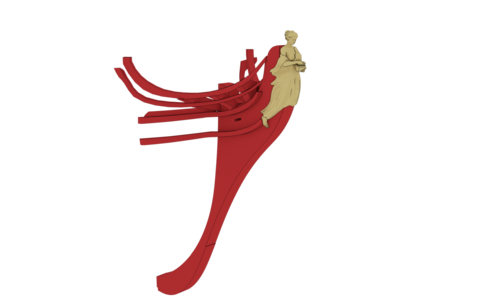

The figurehead:
