French 1/1 mainmast stay rope 1680-1700, La Belle 1680

[kuba91nt]

Hi.
Anyone know what was the thickness of the rope "mainmast lower part stay(100%)"
on the French vessels from 1680th to 1700th in 1/1 scale?
I can't find this information anywhere, it's possible the rope was about 3.5 inches ?

In 1/36 scale its a 2,44mm, im making La Belle 1680. What thickness of rope should I make ?
What do you think about it ?



[Frank48]

Hi.
Anyone know what was the thickness of the rope "mainmast lower part stay(100%)"
on the French vessels from 1680th to 1700th in 1/1 scale?
I can't find this information anywhere, it's possible the rope was about 3.5 inches ?

In 1/36 scale its a 2,44mm, im making La Belle 1680. What thickness of rope should I make ?
What do you think about it ?

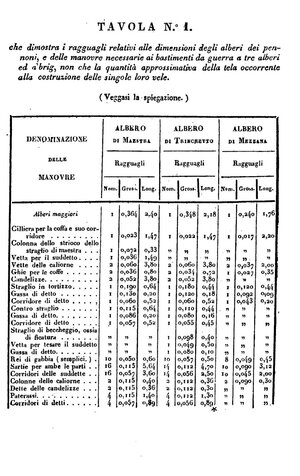

Hi, see a little bit on this table



[kuba91nt]

Thank you, but how to read this ? Im loking for Straglio di maestra or contro straglio ?



[Frank48]

Grazie, ma come si legge? Cerco Straglio di maestra o contro straglio?



[Alexander74]

Hi.
Anyone know what was the thickness of the rope "mainmast lower part stay(100%)"
on the French vessels from 1680th to 1700th in 1/1 scale?
I can't find this information anywhere, it's possible the rope was about 3.5 inches ?

In 1/36 scale its a 2,44mm, im making La Belle 1680. What thickness of rope should I make ?
What do you think about it ?

Its thickness was calculated as 0.166 of the diameter of the lower mainmast in the spotters (the entry point to the deck)



[kuba91nt]

Its thickness was calculated as 0.166 of the diameter of the lower mainmast in the spotters (the entry point to the deck)

Thank you for the information. Regards



[Tobias]

Hi @kuba91nt Please pay attention! There are differences between English and French measurements, here is a link to the topic discussed.

Post in thread 'Le Rochefort Build Log by Donnie'
https://shipsofscale.com/sosforums/threads/le-rochefort-build-log-by-donnie.10938/post-279988



[kuba91nt]

Thank you, I just heard that English measurements are different from French, I know the general formula for rigging, but now I care about high authenticity. Today I received the plans from Ancre, the rigging of La Belle is fully explained there.
