deck planking

[novice]

i have just bought artesania sanfransisco 11 and when i was checking the inventory of part i find i have 3 different size deck planking. as there is no paper plans supplied with this model does anyone have a hint as to which planks are used where. thank s john_j3



[DARIVS ARCHITECTVS]

Your model does come with two CD's with picture instructions in .PDF and .JPG formats, plus instructional videos. There are no paper plans required for this awesome beginner kit. Did you buy an incomplete kit? If so, you can download the instructions and parts list from the following link: San Francisco II - Artesania Latina

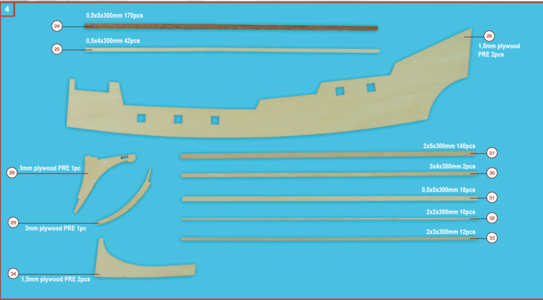

Parts list for Planks:

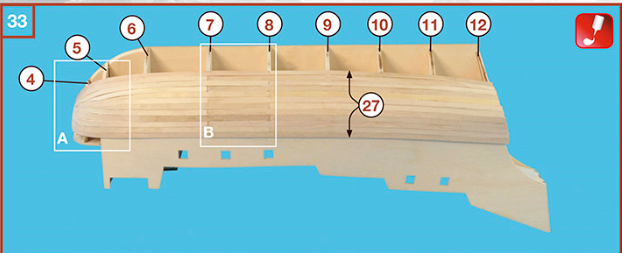

Part 27 is for the first hull planking layer.

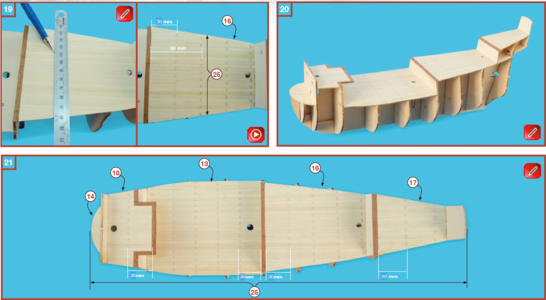

Part 25 is for deck planking.

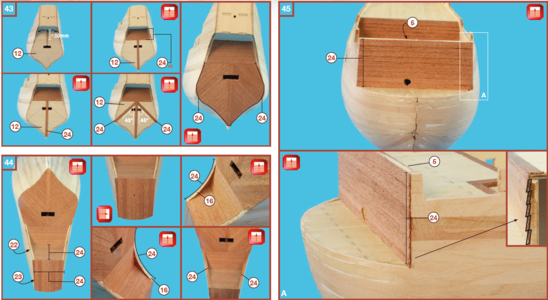

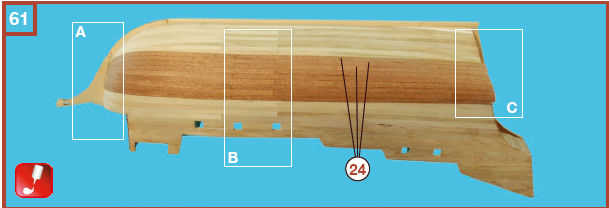

Part 24 is for bulkhead, stern and hull final planking.

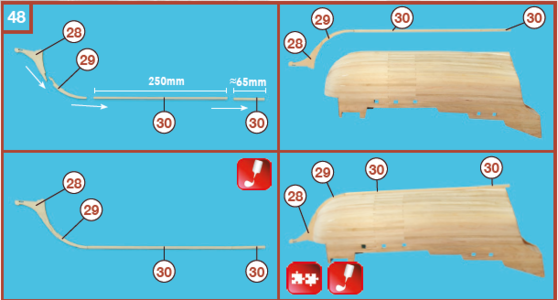

Part 30 is for the keel and sternpost.

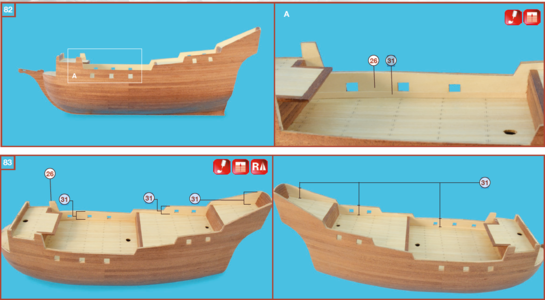

Part 31 is for the bulwarks.


I bought this kit, which is easy to build, and so very cool that I just couldn't resist it.



[miguel92gom]

Good luck my friend! I'm also doing the SF. Can't say I'm an expert as it's my first kit but if I can help you with anything, don't hesitate to contact me.



[Uwek]

i have just bought artesania sanfransisco 11 and when i was checking the inventory of part i find i have 3 different size deck planking. as there is no paper plans supplied with this model does anyone have a hint as to which planks are used where. thank s john_j3

Hallo @novice
we wish you all the BEST and a HAPPY BIRTHDAY
