Another Niña - from scratch

[viriato]

I began to build this ship based on the AMATI plans, but with several modifications introduced by me.

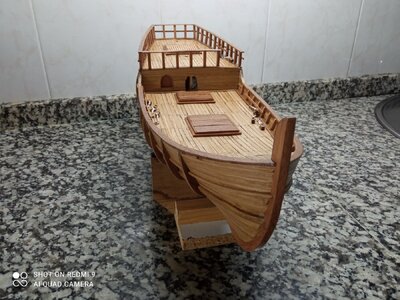

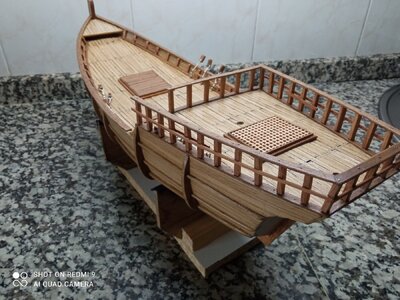

I used chestnut wood to build the hull which has only one layer of planks.The hull is finished and I will now start rigging. For this I will manufacture the blocks and the masts. I will rig my Niña with three masts, according to AMATI's plans.



[viriato]

Hello, everyone.

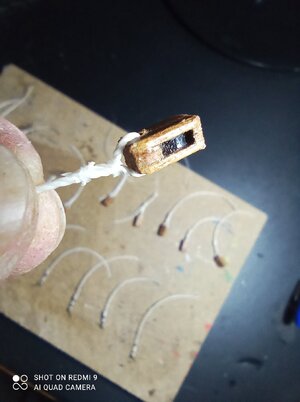

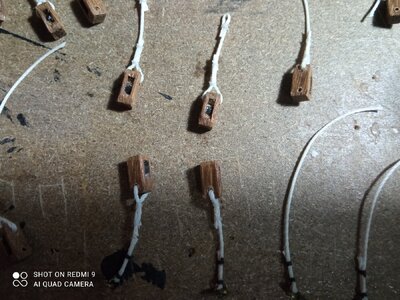

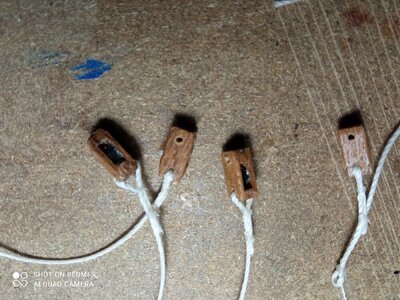

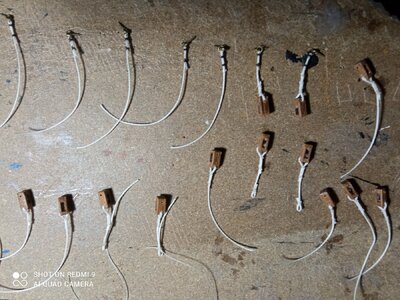

Preparation of the lower and upper blocks for mounting shrouds. In the end, 18 blocks will be needed.



[viriato]

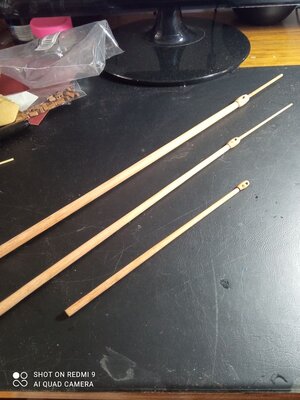

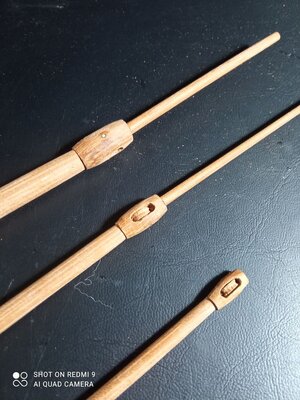

The masts are ready to apply on the ship.



[viriato]

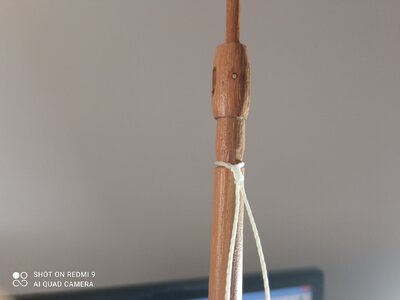

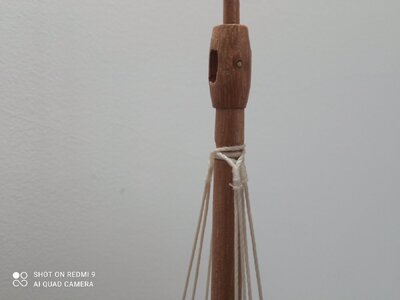

The work continues with the laying of the masts and the beginning of the rigging.



[viriato]



[viriato]

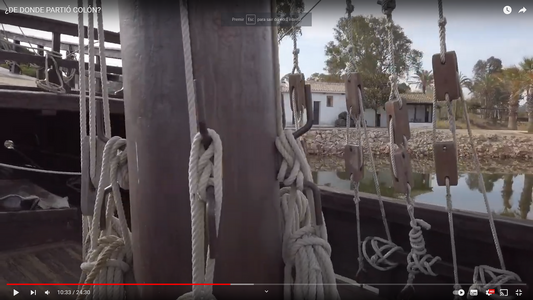

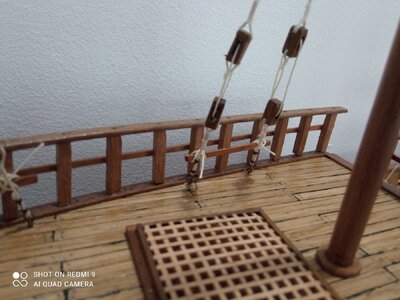

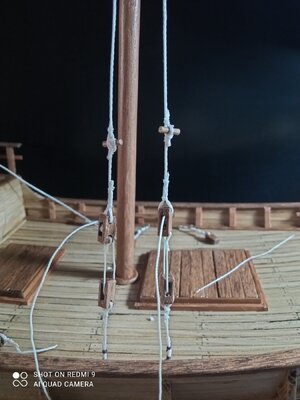

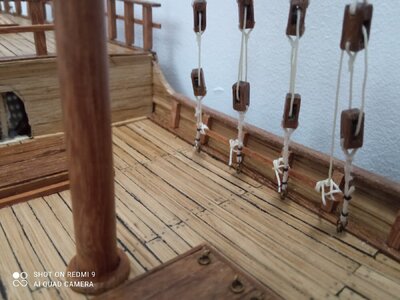

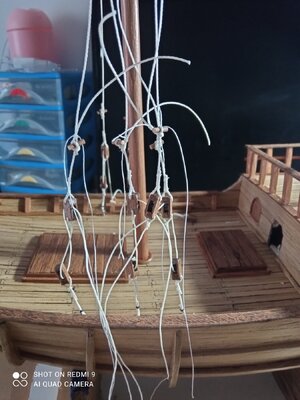

The shrouds were installed based on observation of the full-scale model of the Caravel Niña, which is anchored at the Muelle de las Carabelas, in Palos de la Frontera, Spain.



[viriato]

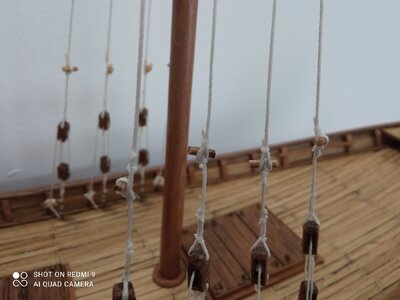

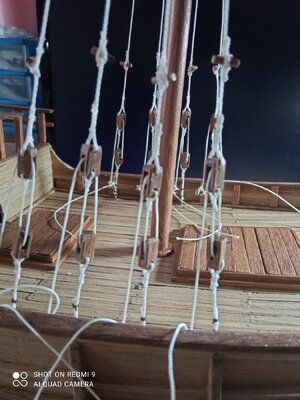

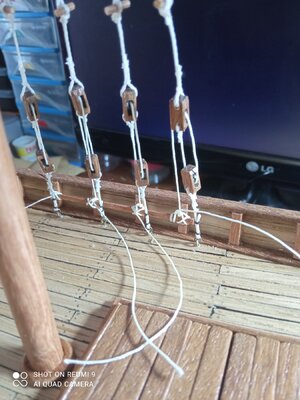

Continuing the laying of the shrouds.

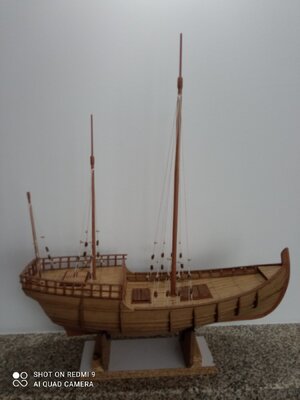

The shrouds were all laid. The ship is ready to receive the sails.



[MavRick]

Thank you for the great photos of your build. A lot of detail to learn from. She is coming along very nicely.
Regards
Rick



[viriato]

Hello, Rick.
I appreciate your comment.

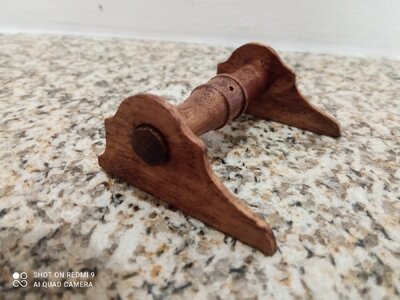

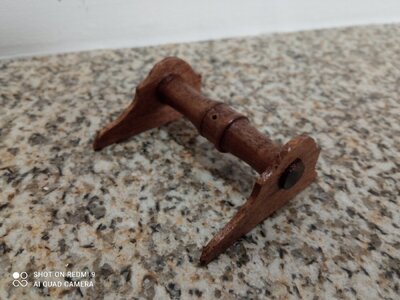

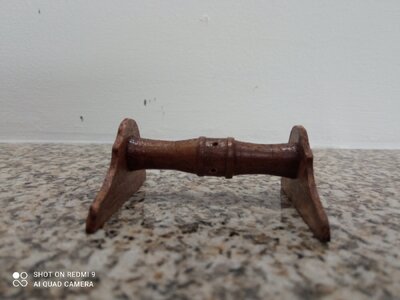

Continuing with the construction of my Niña. I finished the winch and it will be put in its place.



[viriato]

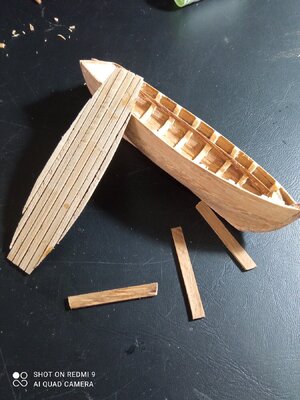

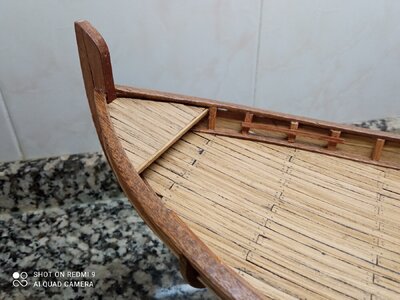

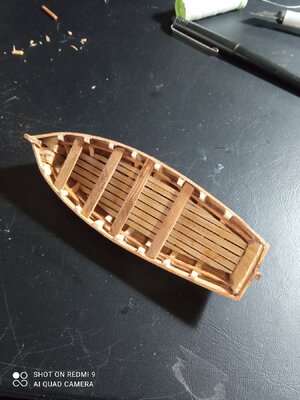

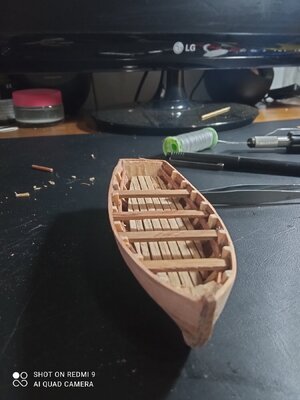

The boat is also nearing completion.



[viriato]

Good morning.

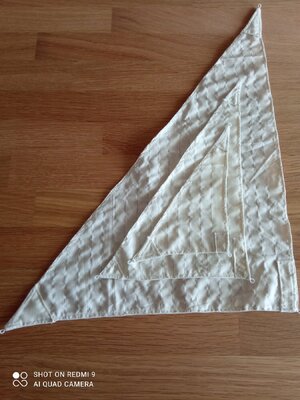

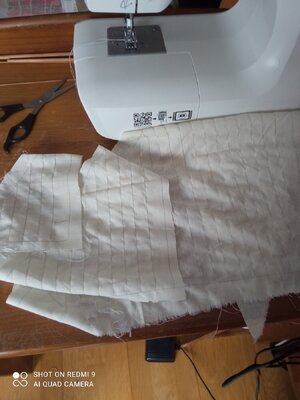

Continuing work on the Niña. The sails were all scored and cut. Its details, ribs and corners were also designed. From there I went to the sewing machine to sew the simulation of the ribs.



[viriato]

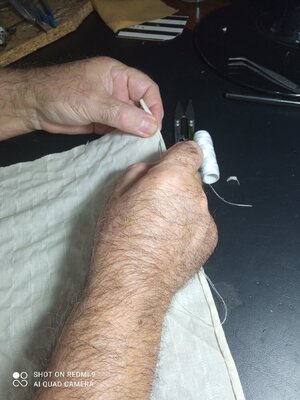

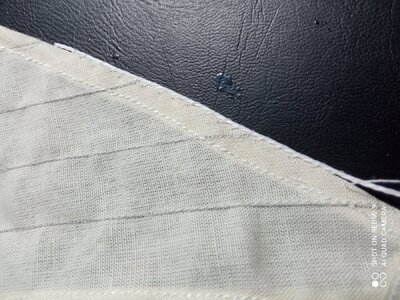

Then all the hems are made. I wish they were a little narrower, but my fingers and eyes no longer allow me a better result. Either way it's satisfying and I'm glad I can still pick up a needle to do some stitches.



[viriato]

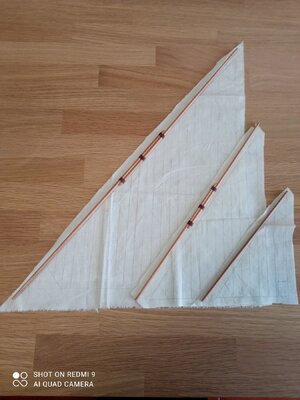

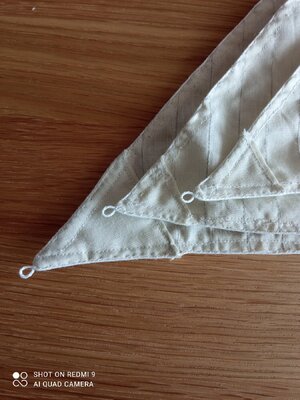

Then I put a 1mm rope (I don't know the correct name) all around the sails. It's time consuming work but I think it gives more realism.







The sails are ready to be placed on the lintels of the masts, which are also already ready.
