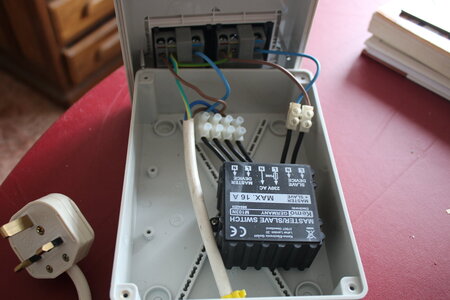

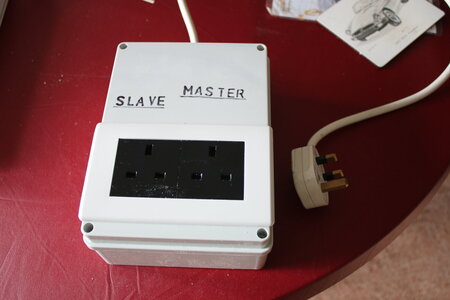

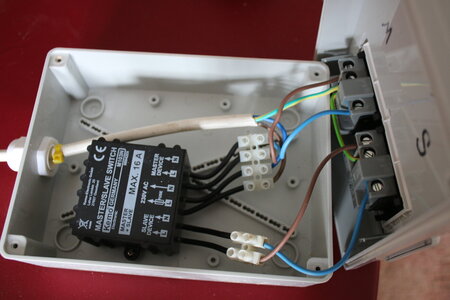

I've just built this Master & Slave switch unit for my full size table saw & extractor. I bought the Kemo switch from Amazon de., the box from ebay & the modulat sockets & faceplate from Screwfix (around the corner from me). Total cost of £39.00.
Another addition to my workshop.
- Thread starter Stuart Little
- Start date
- Watchers 5
Pardon my ignorance, but why would I need one? What purpose is such a device?
I was just going to ask what this switch is for but Jimsky already did.
hi Jimsky & Y.T; You plug your power tool into the 'master' & your extractor into the 'slave', when you switch on the tool the extractor also starts , the tool controls the extractor in other words. The equivalent of having a vacuum with a power take off, heavier duty, as I said it's for my full size tablesaw.
What is the advantage over just running both tools through a common switch? Is there a timer to keep the vacuum on for a few moments after you shut the saw off?
Convenience for one thing, but it means I can plug in different tools & I don't always need the extractor running. Two machines running off the same 13a switched socket could, in my opinion, overload it on start up. No there is no delay timer - I haven't found it necessary, by the time I've finished the cut the hose has usually cleared. I can't say I particularly like the delay as on my Easyvac 3 'indoor' extractor as has a fairly long delay.
Sounds like a “ that would be neat to make “ project “ to me…
Interesting addition to the workbench.... still struggling to see why not using this:

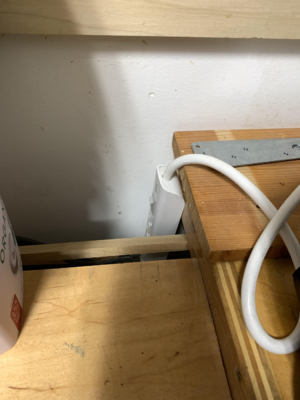

This is what i use to start my vacuum and portable table saw...
Regards,
Moreprovac…. Is that in your workshop or surgical room ?
I just use a foot peddle switch with a 3 receptacle splitter plugged in. Most of the time it’s the shop vac and disc sander.
I just use a foot peddle switch with a 3 receptacle splitter plugged in. Most of the time it’s the shop vac and disc sander.
I prefer to control both from the NVR switch on the table saw which is closer to hand. The idea of a 'master & slave' is to only need to use one switch ie. NVR, with a multi-socket extension, unless it's powered from the motor side of the NVR, one still needs to operate 2 switches as the NVR unlatches when the extension is switched off.
Last edited:
Ahhh, yes, that would be more convenient. My crummy old tablesaw has an add-on switch anyway so it's easy to wire in additions.

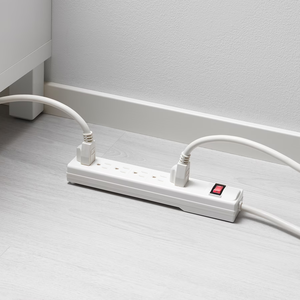

Haha, i wish.... this is the real one.... other one was an Ikea shot...
A foot peddle is the next one on my list..
Cheers
I use a foot switch with my Proxxon tools as their on/off switches are not the most conveniently sited.
