1/36 Le Rochefort to finish

[clogger]

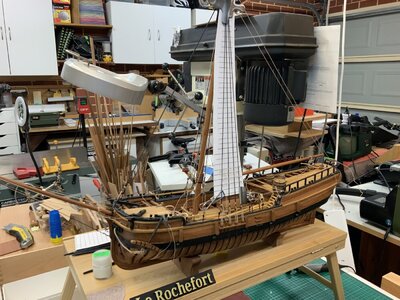

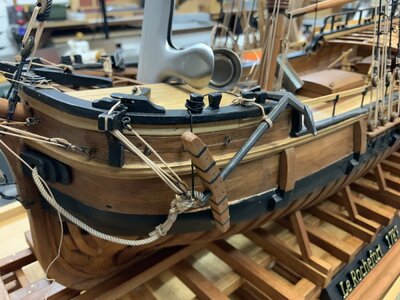

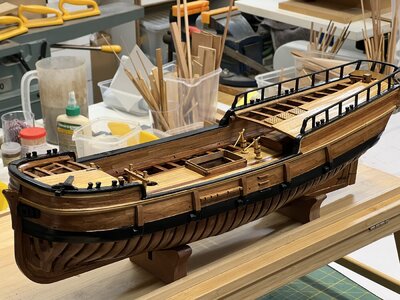

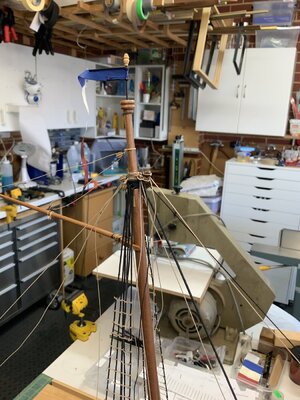

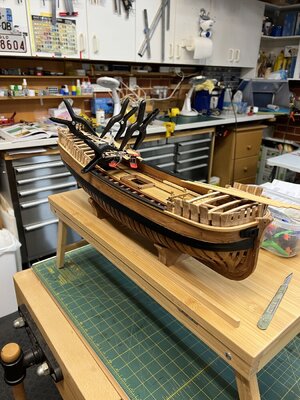

This is now completed after about 2 years work. Le Rochefort was constructed in 1787, (designed as a port yacht to supply gunpowder to the fleet), however my version is depicted on a slipway having just completed a Post Revolution refit, about 1800. It can be viewed in Completed Builds. The rigging set up is mixture of a ship with and without sails attached if that makes sense.

The Link to completed model is here Thread '1/36 Le Rochefort. (Scratchbuild, plank on frame).'

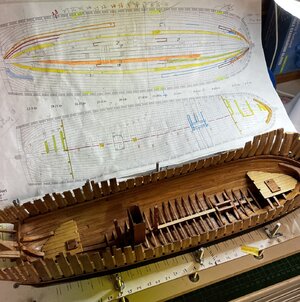

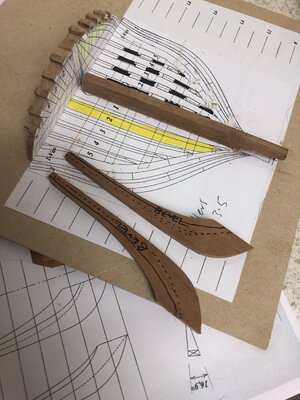

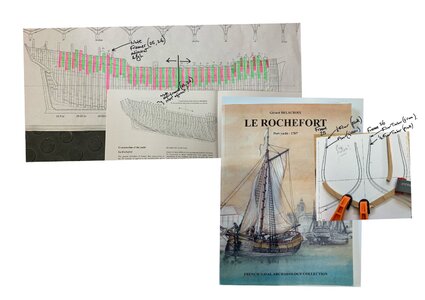

Using Gerard Delacroix’s monograph and following Adrian Sorollas’ excellent book on the building process, it was a fairly straightforward process Scratchbuilding the French Port Yacht. And to be highly recommended.

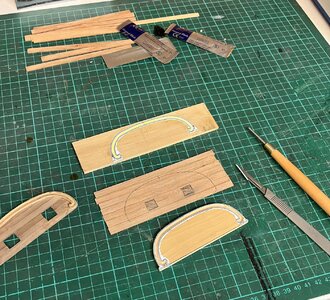

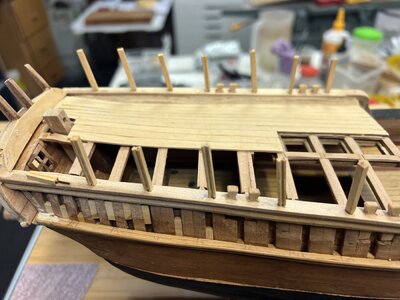

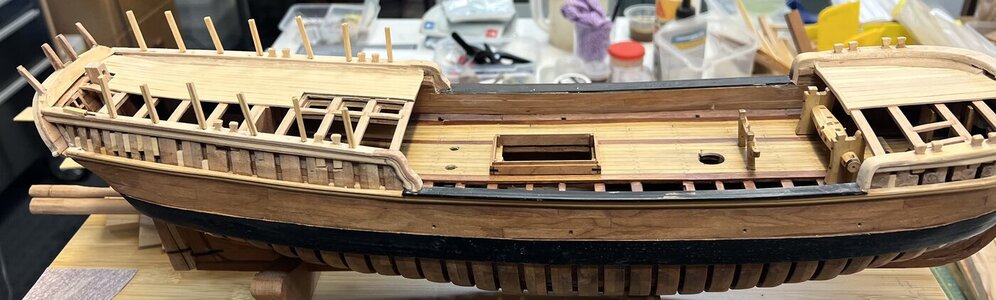

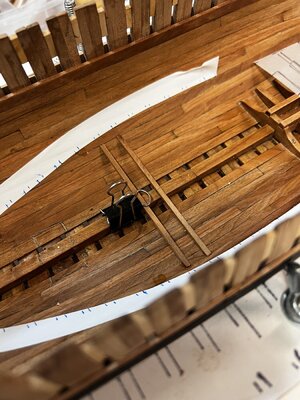

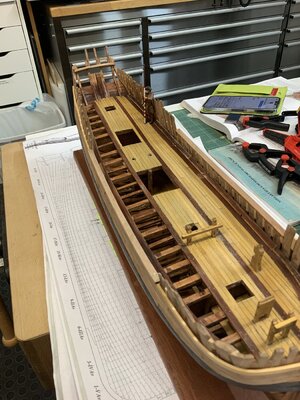

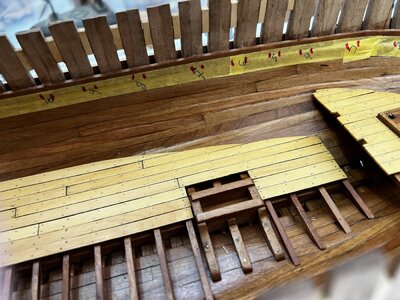

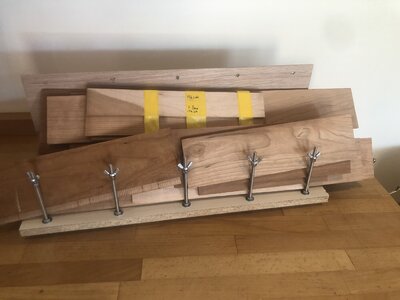

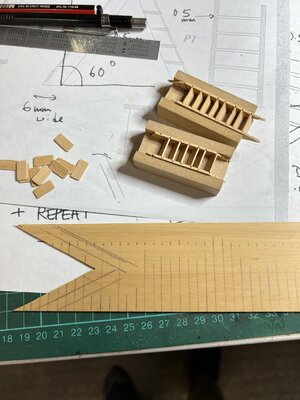

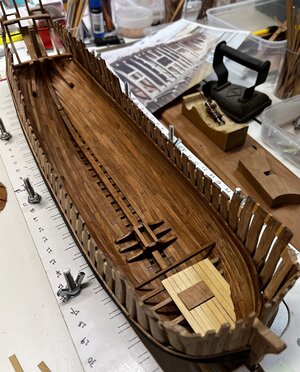

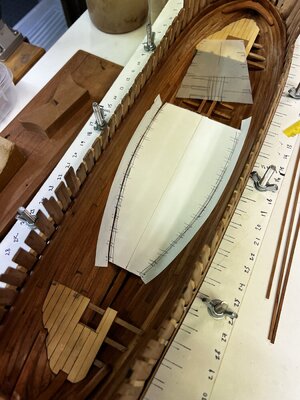

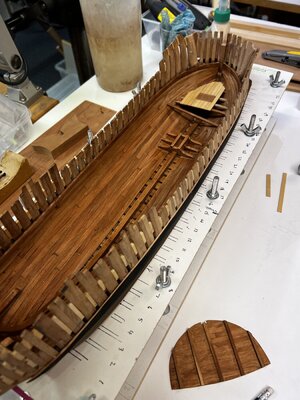

I used mostly Cherry wood and some boxwood for the deck planking, mouldings and windlass.

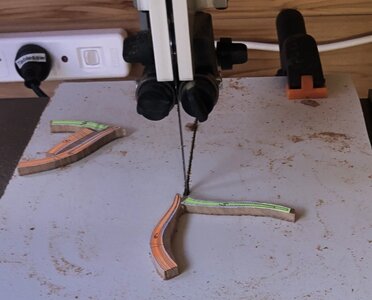

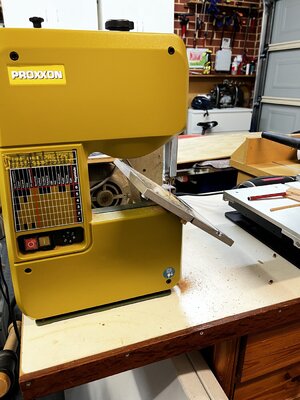

I would have been lost without a good table saw, sanders, thicknesser and of course a milling machine!

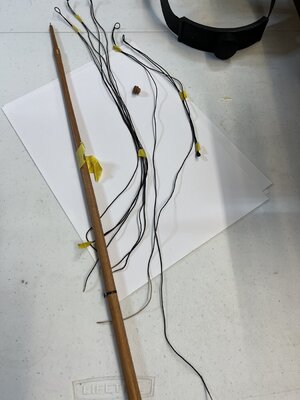

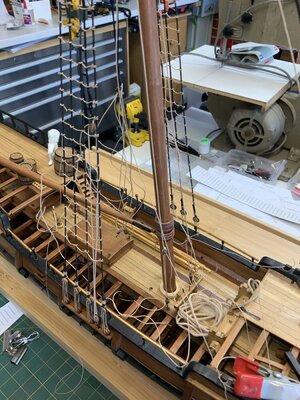

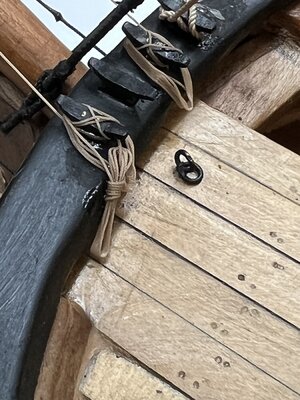

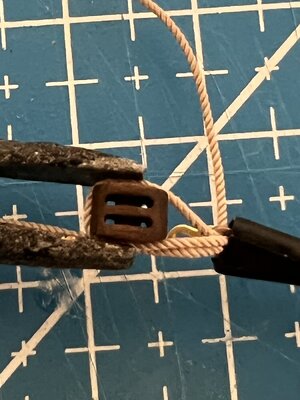

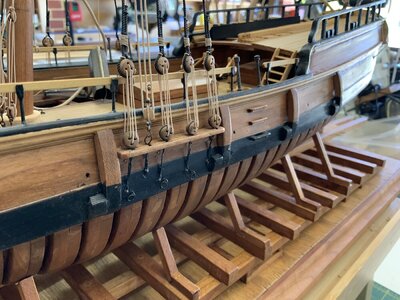

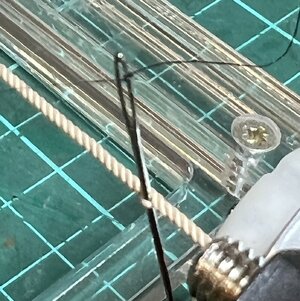

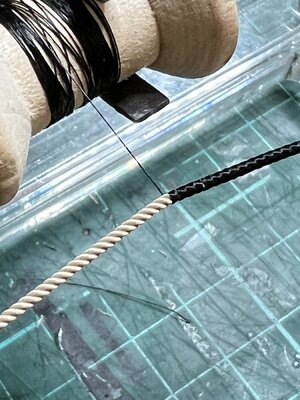

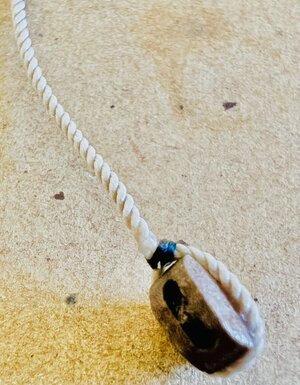

I sourced the rigging, blocks, hooks, from Crafty Sailor, and had the anchors and stem decoration (not yet fitted), made by Szkutnik.

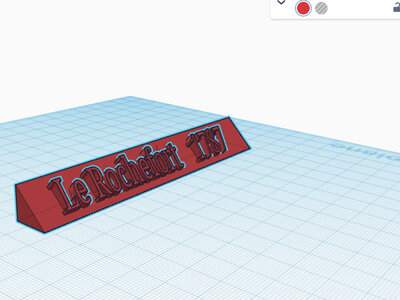

I made my own mast hoops by 3D printing via Tinkercad.

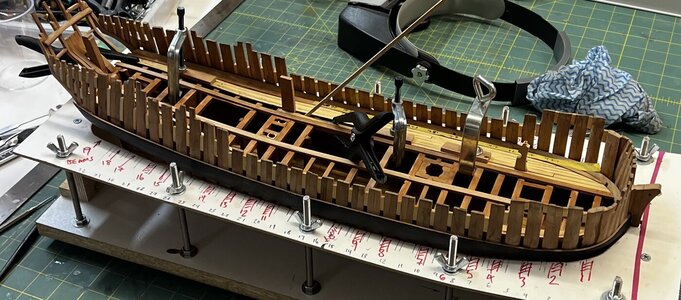

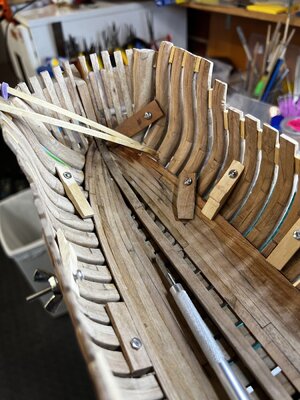

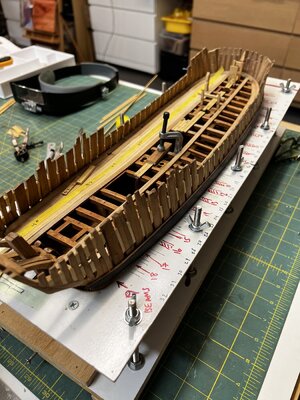

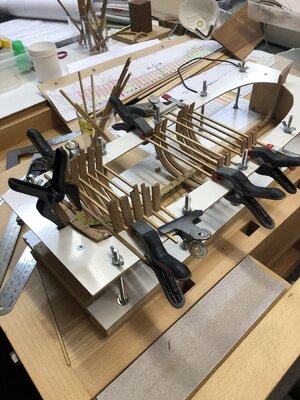

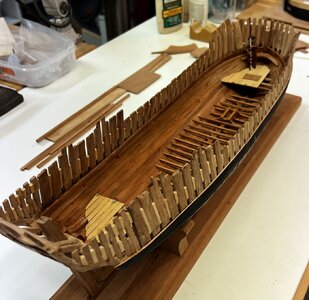

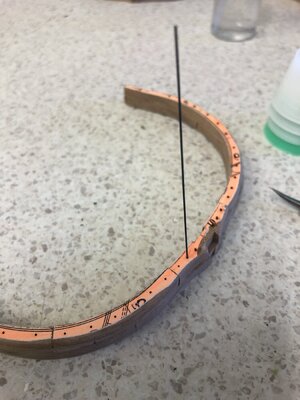

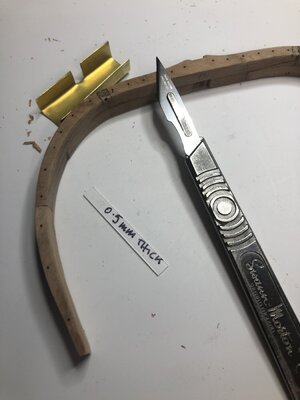

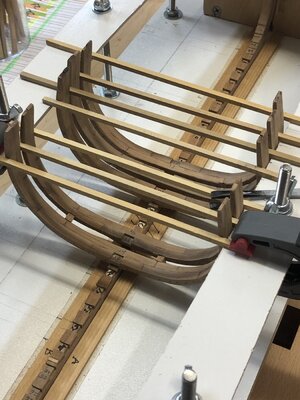

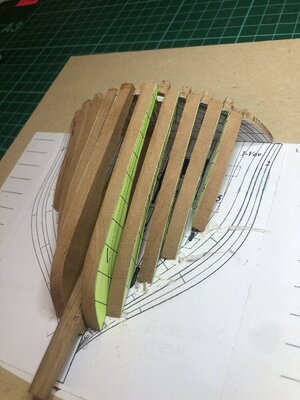

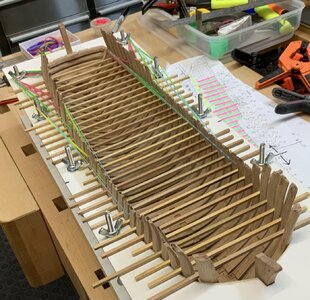

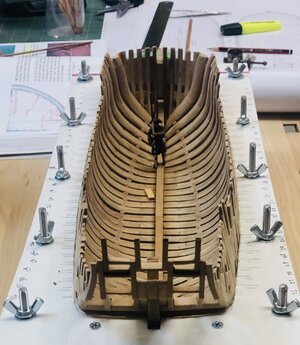

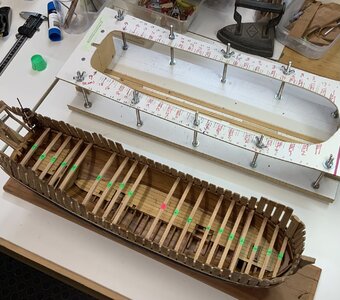

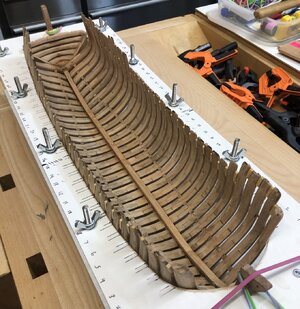

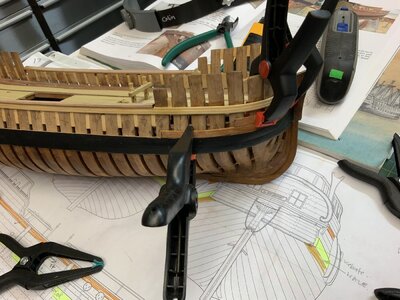

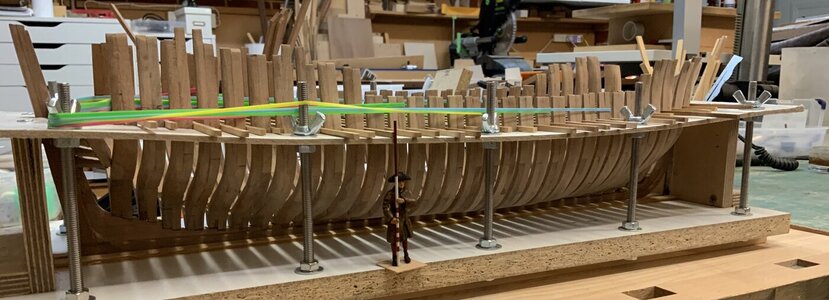

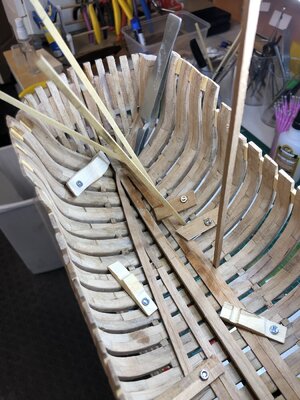

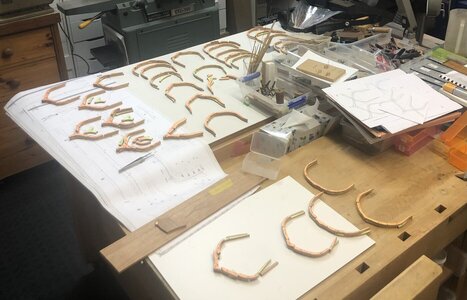

I only pinned the frames (using .5mm carbon rods), I left out the pinning(nailing) of the planking.
I didn’t use lead for the scuppers, and where scarf joints were called for I just used a simpler butt joint.

The figures were from Nemrod, Historex.com



[clogger]



[clogger]



[clogger]



[OlivierF]

Excellent work Clogger!!! Thanks for sharing. I’ve just started on Le Rochefort (group build) and will certainly use your log for reference.
I asked ANCRE about the little surveyor figure you show in several photos and also looked on the historex.com web site (I got from your picture) but no joy. Where did you get the little man?
thanks again for sharing.



[clogger]

Excellent work Clogger!!! Thanks for sharing. I’ve just started on Le Rochefort (group build) and will certainly use your log for reference.
I asked ANCRE about the little surveyor figure you show in several photos and also looked on the historex.com web site (I got from your picture) but no joy. Where did you get the little man?
thanks again for sharing.

Thanks OlivierF

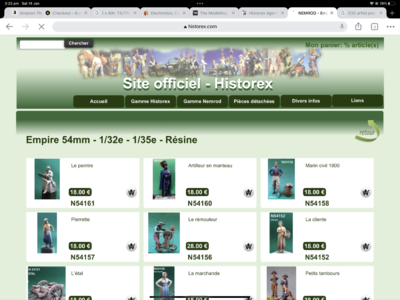

You should find the men here
1 type NCO Historex: Le site official
2 Click on Nimrod range
3 Click bottom R on Empire



[clogger]

I just realised the figure you meant! Not the 2 figures I put on the ship itself.

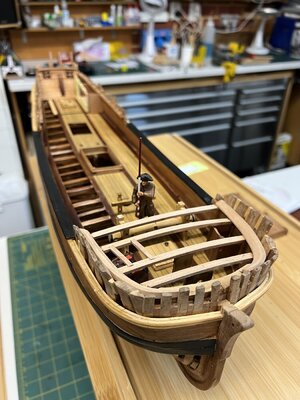

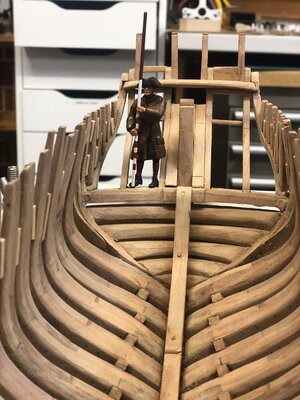

The surveyor I scratchbuilt out of another 1/35 plastic figure. I just carved the legs and used putty for the coat and hat.



[Tony P]

Looks great. Thanks for the pics. What different woods did you use ?



[Splinter]

Hello Clogger, A fantastic build, I will certainly use this report as a reference



[clogger]

Looks great. Thanks for the pics. What different woods did you use ?

Hi, I used Cherry mainly, boxwood for the decking and the windlass and mouldings.



[Tobias]

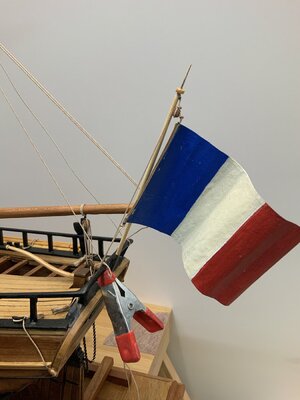

Hello Clogger very nice work, the Tricolor however does not fit chronologically yet, it was hoisted on the ships only after the French Revolution.



[clogger]

Hello Clogger very nice work, the Tricolor however does not fit chronologically yet, it was hoisted on the ships only after the French Revolution.

That’s right. I think I mentioned that it was being presented post revolution on the slipway having an overhaul.

1/36 Le Rochefort - scratchbuild - POF

1/36 1787 Le Rochefort on a slipway having a refit following the Revolution.

shipsofscale.com



[Stutzi]

Magnificent work. I appreciate all the more that it is a French ship.
That being said, I just wanted to point out a slight anachronism.

In 1787, it was still the monarchy and the tricolor flag did not exist.
It was not adopted into the navy until February 15, 1794.

This is what the royal pavilion looked like in 1787 (photo of a real pavilion from 1786).
Good luck reproducing it...



[Stutzi]

More simply, you have the white cross on a blue background with the king's shield. Easier to replicate...



[Tobias]

Magnificent work. I appreciate all the more that it is a French ship.
That being said, I just wanted to point out a slight anachronism.

In 1787, it was still the monarchy and the tricolor flag did not exist.
It was not adopted into the navy until February 15, 1794.

This is what the royal pavilion looked like in 1787 (photo of a real pavilion from 1786).
Good luck reproducing it...
View attachment 352770

As far as I understood correctly, the white flag with the golden lilies is only seen on the ships visited by the French king or the royal family, otherwise it is pure white.



[clogger]

Magnificent work. I appreciate all the more that it is a French ship.
That being said, I just wanted to point out a slight anachronism.

In 1787, it was still the monarchy and the tricolor flag did not exist.
It was not adopted into the navy until February 15, 1794.

This is what the royal pavilion looked like in 1787 (photo of a real pavilion from 1786).
Good luck reproducing it...
View attachment 352770

Thanks Stutzi. My ship is presented as being on the slip around 1800.
I too thought the flag was pure white in 1787.



[Uwek]

This is now completed after about 2 years work. Le Rochefort was constructed in 1787, (designed as a port yacht to supply gunpowder to the fleet), however my version is depicted on a slipway having just completed a Post Revolution refit, about 1800. It can be viewed in Completed Builds. The rigging set up is mixture of a ship with and without sails attached if that makes sense.

The Link to completed model is here Thread '1/36 Le Rochefort. (Scratchbuild, plank on frame).'

Using Gerard Delacroix’s monograph and following Adrian Sorollas’ excellent book on the building process, it was a fairly straightforward process Scratchbuilding the French Port Yacht. And to be highly recommended.

I used mostly Cherry wood and some boxwood for the deck planking, mouldings and windlass.
I would have been lost without a good table saw, sanders, thicknesser and of course a milling machine!
I sourced the rigging, blocks, hooks, from Crafty Sailor, and had the anchors and stem decoration (not yet fitted), made by Szkutnik.
I made my own mast hoops by 3D printing via Tinkercad.
I only pinned the frames (using .5mm carbon rods), I left out the pinning(nailing) of the planking.
I didn’t use lead for the scuppers, and where scarf joints were called for I just used a simpler butt joint.

The figures were from Nemrod, Historex.com View attachment 351532View attachment 351533View attachment 351534View attachment 351535View attachment 351536View attachment 351537View attachment 351538View attachment 351539View attachment 351540View attachment 351541View attachment 351542View attachment 351543View attachment 351544View attachment 351545View attachment 351546View attachment 351547View attachment 351548View attachment 351549View attachment 351550View attachment 351551View attachment 351552View attachment 351553View attachment 351554View attachment 351555

Hallo @clogger
we wish you all the BEST and a HAPPY BIRTHDAY



[Jimsky]

Happy Birthday!



[Luiz B. F. Grassi]

View attachment 351634View attachment 351635View attachment 351636View attachment 351637View attachment 351638View attachment 351639View attachment 351640View attachment 351641View attachment 351642View attachment 351643View attachment 351644View attachment 351645View attachment 351646View attachment 351647View attachment 351648View attachment 351649View attachment 351650View attachment 351651View attachment 351652View attachment 351634View attachment 351635View attachment 351636View attachment 351637View attachment 351638View attachment 351639View attachment 351640View attachment 351641View attachment 351642View attachment 351643View attachment 351644View attachment 351645View attachment 351646View attachment 351647View attachment 351648View attachment 351649View attachment 351650View attachment 351651View attachment 351652View attachment 351653View attachment 351654View attachment 351655View attachment 351656View attachment 351657

What a beautiful job, congratulations !
