St. Gabriel Master Korabel 1:72 scale

Aginvicta

Well-Known Member
Joined
Aug 25, 2017
Messages
298
Points
93

Location
Moira N.I.
#21
Hi andy, sounds like a great job you have with bring your boat to work.
Hi Maarten, I take an hour's lunch break when I sit in my car, listen to the radio and read. What I have started doing is taking the various parts of this kit with me and spending some time at lunchtime filing off the laser char and making sure the parts fit ok, that way I can then glue them in place when I get back to the house.

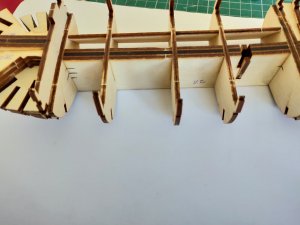

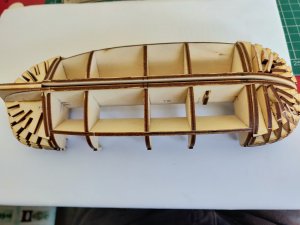

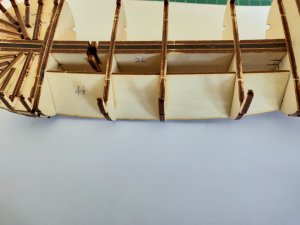

The weather has been really good all weekend so I've been playing Tennis and taking Archie for walks around our local park but I did manage to fix the 3 Bulkheads that fit in the middle of the Boat. These slotted into place without me having to do any "clean up" and where fitted dry and then diluted wood glue was run along the joins. The fit is that good I could get away with not using glue on any join.


Cheers Andy


Aginvicta

Well-Known Member
Joined
Aug 25, 2017
Messages
298
Points
93

Location
Moira N.I.
#24
I have now finished working on the Stern Extensions, dry fitted them, and then I ran watered down wood glue into all the joins.


Instead of smoothing off all the rough edges on the Bow and Stern, I decided to fit what the instructions describe as the "Rough" Planks. These are the Planks that fit to the middle part of the Hull. These all come on a laser cut sheet.

6 straight Planks are fitted each side starting at the Keel and then the pre-shaped Planks are fitted working down from Deck level. Even though the Boat is pretty much solid I still decided to plank both sides one Plank at a time. 2 Planks were removed and cut to length, they are supplied about 5mm too long. Following the written instructions I soaked them for about 30 minutes and then filed an angle on the side next to the Keel to get a better fit. These Planks were then glued in place and clamped.



Cheers Andy


Aginvicta

Well-Known Member
Joined
Aug 25, 2017
Messages
298
Points
93

Location
Moira N.I.
#26
OK Andy...weekend's up now. Where is our update? :) All kidding aside, hope all is well and look forward to more of your build.
Ron
Hi Ron, thanks for your interest. I have finished fitting the 12 Rough planks and smoothing off some of the rough edges, but no photos yet. I'm afraid you will have to be like a good Doctor and have plenty of patience (patients),
Cheers Andy


Aginvicta

Well-Known Member
Joined
Aug 25, 2017
Messages
298
Points
93

Location
Moira N.I.
#27
I have now fitted the 12 "Rough" planks and before I turn my attention to the pre-shaped planks I fitted the 2 Cabin Window outer Frames. These needed to be chamfered on each outer edge so that they would fit between the Bulkheads in the Stern area.


These Window Frames will be filed down to match the Hull curves, and then I'll paint inside black before fitting the Window Panes.

Cheers Andy


ron0909

Well-Known Member
Joined
Jul 8, 2018
Messages
99
Points
53

Location
Ottawa, Canada
#28
Thanks Andy :) As usual the pictures, explanations and workmanship are top rate! Your work and model has convinced me to save the pennies for a Master Korabel kit. I was thinking of their Phoenix..
Can't wait to see the shaped planks wrap their way around that hull!
Ron


Aginvicta

Well-Known Member
Joined
Aug 25, 2017
Messages
298
Points
93

Location
Moira N.I.
#30
Very nice build, Andy! I am well familiar with Mater Korabel kit maker. I have built models from them. They are really good design and quality kits.
Keep up the great work, will watch your log.
Thanks Jim, I am impressed by the design and quality, not just the wooden parts but also the detailed instructions, even though the translation from Russian into English is not perfect and there are some places where I need to read it several times to fully understand what the process is, it is obvious to me that this has been designed by model makers.

Thanks Andy :) As usual the pictures, explanations and workmanship are top rate! Your work and model has convinced me to save the pennies for a Master Korabel kit. I was thinking of their Phoenix..
Can't wait to see the shaped planks wrap their way around that hull!
Ron
Thanks Ron, but please be patient, I only get a couple of hours a week to work on this. There is a full built log on Youtube of the Phoenix, if you get the chance to watch it all you will definately want to get the Pheonix.

https://www.google.co.uk/url?sa=t&r...=1ITBzejbDbA&usg=AOvVaw2CBnDwPt08sNa30M51HrKn

ww.youtube.com/watch?v=1ITBzejbDbA

Cheers Andy
