The problem is fixed by "cutting" the garboard plank to fit the hull.

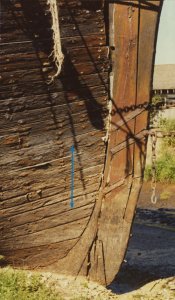

lets take a look at how the shipwright solved the problem a look at a hull you can see at the stern the garboard and bottom planks flare out the bottom yellow arrow is the lower edge of the garboard against the keel and the next yellow arrow up it the top edge of the garboard. The next two bottom planks the flare gets less the higher up the stern post. The gap that occurs is filled in by the shape of the plank and the run of the plank will follow the hull.

closeup stern_edited-1.jpg

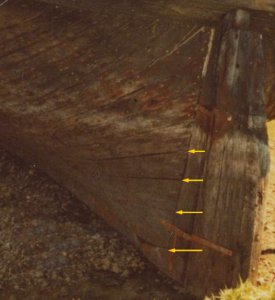

this picture gives you a better example of the flare of the bottom planks. It is this flare at the ends that allow the bottom planks to take a natural curve.


looking at the bow of the garboard the end is called the "hood" and it fills the lower space created by the natural upper sweep of the garboard plank.

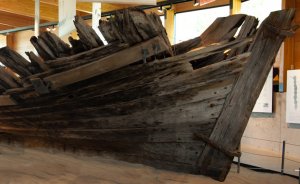

The next plank up is the bottom plank and it also has a flare. The planks in the blue arrow part notice are much narrower this is because the next belt of planking has to conserve space along the stem or you will end up with a gap at midship and no room for the ends of the planks at the stem.

ALVIN stem_edited-1.jpg


didit

Well-Known Member
Joined
Jun 30, 2017
Messages
830
Points
93

#62
The final shape of the garboard looks like this and it will lay nice and flat all along the bottom of the hull. you can see why a wider plank is needed to shape the garboard.

garboard plank.jpg

keeping with scale lengths of planking the cardboard pattern was used and the garboard is made in two pieces.


The garboard plank on one edge fits nice and snug into the keel rabbit and the upper edge takes a gentle curve of the hull. To accomplish this the garboard was cut to fit and not bent to fit the hull.



didit

Well-Known Member
Joined
Jun 30, 2017
Messages
830
Points
93

#63
Bending and clamping planks to the hull is always a concern just looking at the front section of the garboard the end has to bend and twist to fit the stem. That seems to be pushing the limits of what a plank will do without breaking or splitting. The end has to take almost a 90 degree twist.


you can see here if the end is held against the stem the plank has to twist and bend to lay flat to the bottom of the hull and slip into the rabbit.

plank flex4.jpg


didit

Well-Known Member
Joined
Jun 30, 2017
Messages
830
Points
93

#64
You might find this hard to believe but the garboard was bent and twisted dry and without the use of one of those plank benders you heat up.
soaking the plank and steam heat does help in bending planks. One draw back is this method softens the plank and being soft clamps tend to leave a mark.

What I did was to use a wood that actually bends as you can see here.

plank flex2.jpg

and you can also twist it 90 degrees

plank flex1.jpg

no magic was used in the demonstration of bending the wood all it took was a wood suitable for bending AND using aged wood not kiln dried wood. Kiln dried wood makes it brittle aged wood maintains it natural elasticity.


didit

Well-Known Member
Joined
Jun 30, 2017
Messages
830
Points
93

#65
the next plank to fit is the first bottom plank laying the plank on the top edge of the garboard it follows the edge and leaves a gap. i do not want to force the plank down because it will want to spring edgewise.

bottom 1.jpg

if i bend the plank with the curve of the hull there is a slight overlap of the garboard.

bottom 2.jpg

i drew a line along the bottom of the bottom plank

to get the bottom plank to lay natural and flat to the hull i will sand off the extra material on the garboard.

bottom 3.jpg

Here you can see what has to be removed from the top edge of the garboard

bottom 4.jpg

sanding the edge of the plank i use a sanding sled which is nothing more than a small block of wood with a pieces of sanding belt glued to the side. I also nipped off the front edge so the block does not get caught on anything. the sanding goes very quick and easy.

sand block.jpg


didit

Well-Known Member
Joined
Jun 30, 2017
Messages
830
Points
93

#66
a strake is a run of planks that run longitudinally along the hull from on end to the other.



a proper planking job has all the stakes of planking running the full length of the hull from stem to sternpost which in order for all the strakes to fit, the ends at the bow have to be tapered.



looking close at the first bottom plank it has a flare to it. This plank was spiled to fit the hull. This is done by taking measurements from a batten running along the hull and measurements are taken from the batten to the top of the garboard and the bottom edge of the plank is cut to fit thus filling that gap we saw when the plank was run to the hull curve.



What i did with the bottom plank you could call reverse spiling because i cut the top of the garboard to fit the bottom of the next plank.


didit

Well-Known Member
Joined
Jun 30, 2017
Messages
830
Points
93

#67
fitting the bottom plank requires extreme bending and very often clamping is a problem and at times the plank will move and you don't notice it until you remove the clamps. My solution to the problem is the glue the end of the plank in place and allow the glue to dry. This requires little force and all you need to do is snug the plank into position.

bottom 5.jpg

bottom 6a.jpg


when the glue is setup the end of the plank it secure in place so i can bend the plank and hold it with push pins. An advantage to using the sign board as filler between bulkheads is it is dense enough it will hold the pins so they do not pop out from the pressure of the bent plank.

bottom 7.jpg


didit

Well-Known Member
Joined
Jun 30, 2017
Messages
830
Points
93

#68
At the stern the plank will follow the curve of the hull and sweep upwards leaving a gap

bottom 8.jpg


Here is where i cut the plank to fit the hull and fill in the gap and you can see the shape of the plank. another method is to use a stealer to fill the gap

bottom 9.jpg



didit

Well-Known Member
Joined
Jun 30, 2017
Messages
830
Points
93

#69
depending on the shape and size of the hull determines the amount of bottom planks used. Two or three works for this size hull so from here i establish the first belt of planking by using 4 pieces of planking at the mid section and bending a batten to the curve of the hull



By doing this i know where the upper line of the belt of planking is and the taper of the planks. midship it takes 4 plank widths, at the stern 3 and at the bow 2 1/2

belt 2.jpg

belt 5.jpg

belt 3.jpg

belt 4.jpg


didit

Well-Known Member
Joined
Jun 30, 2017
Messages
830
Points
93

#70
now I have to catch up with the build log and plank up the other side then we can continue with the first belt of planking.

so while I am planking the other side take a break and look at the planking on some of these high end models

https://www.shipsofscale.com/sosfor...chefort-france-18-th-21-st-october-2018.2050/

planking a hull the correct way is an art unto itself and the pride of a master shipwright. I understand for many this is a hobby and having fun with it is the prime concern. However, there is nothing wrong with pointing out the wrong way to plank a hull just in case your planning on entering a model is a show like the one above OR you just want to challenge yourself.

what not to do

planking is cut and shaped to fit the curves and shape of a hull or you end up with gaps and the plank run does not flow with a sweet curve.

the strakes as a whole tapper or you will run out of room at the stem


hum the builder got into trouble early in laying out the belts of planking


nice looking planking BUT remember all strakes run to the stem and not under the wale


a "hard" bend which has nothing to do with the planking and this is because of no bevel to the bulkhead and the hollow space between the bulkheads give no form to the hull so the planks will lay flat

hard bend1_edited-1.jpg

master shipwrights took a lot of time to plan out the run and shape of planking in what is called an expansion drawing

drawing planks.jpg

planking by the spiling numbers


and if you are really good you can do this

plank 2_edited-1.jpg
