Producing a bended / curved deckbeam

Uwek

Well-Known Member
Staff member
Moderator
Joined
Dec 25, 2017
Messages
961
Points
93

Location
Vienna, Austria
#1
I found some old photos of one method, how you can produce a curved deckbeam

This method is very good, if you have to produce a bigger number of deck beams with the same camber.

If f.e. the deckbeam should be 6 mm thick, use three times 2mm thick planks, which are allone flexible enough to take over the necessary camber.

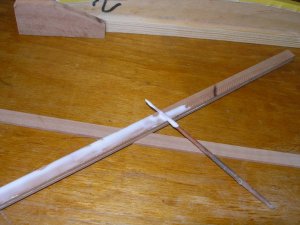

Use wood glue which is not fastening fast and glue them together

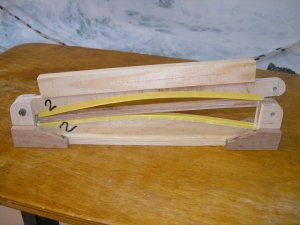

Before the glue is hardening you have to put this sandwich into a jig like this


Close it slowely, so that the planks are not shifted

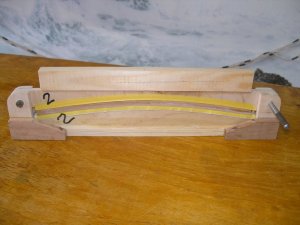

With the preassure all three planks are taking over the same camber and the glue can harden. you can have several jigs for different cambers.


After the glue is hardened the beam keep the necessary camber.

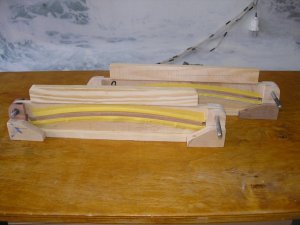

On the last photo you can see the basic material and the result with two curved beams



prutser

New Member
Joined
Feb 18, 2018
Messages
2
Points
3
#2
I found some old photos of one method, how you can produce a curved deckbeam

This method is very good, if you have to produce a bigger number of deck beams with the same camber.

If f.e. the deckbeam should be 6 mm thick, use three times 2mm thick planks, which are allone flexible enough to take over the necessary camber.
Use wood glue which is not fastening fast and glue them together

View attachment 38359

Before the glue is hardening you have to put this sandwich into a jig like this

View attachment 38360

Close it slowely, so that the planks are not shifted

View attachment 38361

With the preassure all three planks are taking over the same camber and the glue can harden. you can have several jigs for different cambers.

View attachment 38362

After the glue is hardened the beam keep the necessary camber.
On the last photo you can see the basic material and the result with two curved beams

View attachment 38363
this same method is also described in one of the Warrior 1781 books by William Romero,very inspiring


Uwek

Well-Known Member
Staff member
Moderator
Joined
Dec 25, 2017
Messages
961
Points
93

Location
Vienna, Austria
#4
this same method is also described in one of the Warrior 1781 books by William Romero,very inspiring
Many Thanks for the info......two guys - one thought......if Romero is describing it, so it can not be so wrong :)
