LA SALAMANDRE, bomb ketch - POF - (CAF-models, 1/48)

Uwek

Well-Known Member
Staff member
Moderator
Joined
Dec 25, 2017
Messages
2,778
Points
113

Location
Vienna, Austria

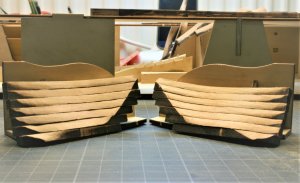

Yesterday evening I could also work on the other side of the hawse pieces of the La Salamandre ......with inside sanding and dry fit (once more only with double sided adhesive tape)

IMG_26281.jpg IMG_26291.jpg

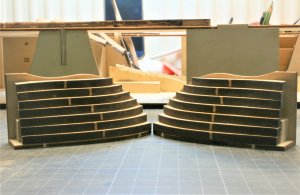

the first two photos showing the seven parts for each side inside the temporary jig

view towards inside

and a first check of the hawse pieces temporary installed with some clamps at the stem.....and I remembered my small helper with the measurement stick

Thanks for your interest.....to be continued


Peglegreg

Well-Known Member
Staff member
Moderator
Joined
Jul 30, 2017
Messages
1,101
Points
113

Location
Central Coast NSW
G'day Uwe
Looking great mate!
The last photo the areas the you beveled on the port side is like a mirror image on the starboard side. Well done.
Havagoodone and happymodeling
Greg


Uwek

Well-Known Member
Staff member
Moderator
Joined
Dec 25, 2017
Messages
2,778
Points
113

Location
Vienna, Austria
G'day Uwe
Looking great mate!
The last photo the areas the you beveled on the port side is like a mirror image on the starboard side. Well done.
Havagoodone and happymodeling
Greg
It is not looking like a mirror image - It is one - It was not easy to cut the mirror into the form of the stem ;)
Many thanks for the comment


Uwek

Well-Known Member
Staff member
Moderator
Joined
Dec 25, 2017
Messages
2,778
Points
113

Location
Vienna, Austria

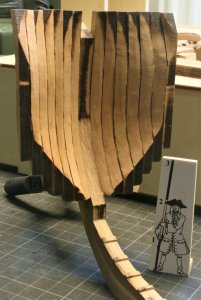

Yesterday I made some small progress on the frame 45, continuing of posts #238 and #240

you remember.....
IMG_16961.jpg IMG_26221.jpg

I removed the triangle which was marked on the second photo with a pencil to get a continuous frame thickness of the 9mm....


IMG_26531.jpg IMG_26541.jpg

to be continued......


zoly99sask

Well-Known Member
Staff member
Administrative
Moderator
Joined
Apr 13, 2015
Messages
1,905
Points
113

Even thou this a kit a hell lot work and sanding those frames and align them ,looks good so far.


Uwek

Well-Known Member
Staff member
Moderator
Joined
Dec 25, 2017
Messages
2,778
Points
113

Location
Vienna, Austria
Even thou this a kit a hell lot work and sanding those frames and align them ,looks good so far.
Hallo Zoly,
many thanks for visiting my log and your comment.
I have to agree here 100% . A "kit" means here, that the the kit producer is delivering the timber in good quality, every material in enough quantity and the wooden elements are pre-cut by the laser. With this hundreds of hours less work sitting in front of the scroll saw,
A very important add-on and additional service provided with the kit is the preparation of the sanding / fairing lines which are marked with the laser, not deep cuts, only at the surface. In the beginning of my work on the frames I left every time everywhere some "meat", but I realized step by step working on the La Salamandre, that these lines are very accurate and exact.
Nevertheless the construction needs still a lot of work, in positive sense. And a lot of fun in addition.

I can fully recommend these kind of kits, and I can advise to buy one - a positive callenge


Uwek

Well-Known Member
Staff member
Moderator
Joined
Dec 25, 2017
Messages
2,778
Points
113

Location
Vienna, Austria
Today I want to go further with the hawse pieces of the La Salamandre, so continuing with the post #241.....

In this post I will show once more a bigger number of photos, so it could be a little bit boring for some of you, but hopefully will help others which want to build the same model kit ....... And for me it was also important to check the sizes and how the elements fits together, in moment everything only temporary assembled with the help of some tapes (partly you can see the small gaps between the pieces).

On the first photo you can see the hawse pieces jigs layed on top of frame No.1 which will be later on the direct connection. You can see how correct and exact the jig is following the form of the frame. The fairing of frame No.1 was done as close as possible with the prepared laser line marked on the frame elements.

Removing the jigs and using a scrap wood, with approximately the same thickness like the Stem also on top of the

and the same from the back- better inside

Afterwards I removed the scrap and made the same example with temporary fitting against with the stem of the model

First the jig at appr. location attached at the stem

and afterwards the hawse pieces
IMG_26391.jpg IMG_26381.jpg

IMG_26421.jpg IMG_26401.jpg

view exactly from the side (@Peglegreg : this time no mirror was used ;-) )
IMG_26431.jpg IMG_26441.jpg

and some more impressions------- I like this part of the ship, and due to the fact, that everything is fitting realy good - many thanks to CAF - I like this kit very much

IMG_26451.jpg IMG_26491.jpg

IMG_26471.jpg IMG_26481.jpg

Many thanks for the interest ...... to be continued......


Uwek

Well-Known Member
Staff member
Moderator
Joined
Dec 25, 2017
Messages
2,778
Points
113

Location
Vienna, Austria
Continuing with the building log of the La Salamandre, a chinese Plank-On-Frame POF kit from CAF in scale 1:48 and based on the Jean Boudriot drawings of the plan set of ancre.....

Yesterday evening once more working on frame 45, so this post is follower of post #244

after sanding the floor timber the frame has this appearance
IMG_26611.jpg IMG_26621.jpg

on the last photo you can finaly see the sandwich concept of this frame (see herefore also the photo from instruction in post #244)

In connection with frame 44 it is looking like this, with pencil marked is the area which still has to be faired.
IMG_26561.jpg IMG_26571.jpg

IMG_26591.jpg IMG_26601.jpg

After this I made a dry fitting on top of the keel
IMG_26651.jpg IMG_26661.jpg


Many Thanks for your interest ..... to be continued....


Uwek

Well-Known Member
Staff member
Moderator
Joined
Dec 25, 2017
Messages
2,778
Points
113

Location
Vienna, Austria
Small progress at the stem, still dry fit in order to check and adjust. I guess it is one of the most complicate areas of this CAF kit of the La Salamandre.
Also the ancre drawings from Jean Boudriot are not helping so much......



thanks for your interest..... to be continued......


Aginvicta

Well-Known Member
Joined
Aug 25, 2017
Messages
256
Points
63

Location
Moira N.I.
Great work Uwe, when you see what you are doing it makes you realise that amount of skill that went into building the real ships of that era,
Cheers Andy


Uwek

Well-Known Member
Staff member
Moderator
Joined
Dec 25, 2017
Messages
2,778
Points
113

Location
Vienna, Austria
Great work Uwe, when you see what you are doing it makes you realise that amount of skill that went into building the real ships of that era,
Cheers Andy
Hallo Andy,
thansk for your visit and your kind words......completely correct, We are working in the small scale only on some small piece of wood, sanding here and there, and it takes hours and days that a small part is finished.
And the old shipwrights had to work with much bigger and much heavier parts than us, and also with less tools and equipment.......and they had no forum to share the experiences and knowledge.....


Uwek

Well-Known Member
Staff member
Moderator
Joined
Dec 25, 2017
Messages
2,778
Points
113

Location
Vienna, Austria
Many thanks to everybody for visiting my log, commenting and also for your likes.....Much appreciated.
The log is open for every body to comments of every kind, positive (which I like) and also negative (which I have to like to improove my work)

Some small progress with the fashion pieces of the Salamandre, yesterday I prepared the two lower ones, the smallest ones, so that I am coming closer to the final assembling......closer....
for information: the horizontal timber on the top is only temporary as a spacer between frame 44 and 45, in order to keep the distance between the frames IMG_28631.jpg IMG_28661.jpg IMG_28651.jpg


Thanks for your interest ......to be continued.......

Last edited:

Uwek

Well-Known Member
Staff member
Moderator
Joined
Dec 25, 2017
Messages
2,778
Points
113

Location
Vienna, Austria
I made some small works at the stern post......before I checked the information in the web about this, but could not find a definite answer of how I have to prepare finally the shape of the sternpost (rabbet, sanding) , so that the later planking of the hull can be done.
Finally I made my decision, mainly based on the Boudriot drawings of the La Salamandre and my interpretation how it hace to be.......if necessary I am able to adjust this during the planking activities of the hull.

IMG_3036.JPG IMG_3037.JPG IMG_3038.JPG

Later on a timber has to be installed at the outside edge of the stern.
The width of the original from the kit is slightly too small, so maybe I will make later on one from scratch.
But this question has also to be answered during planking......

and the same situation from the side, so you can see this timber better, on the left photo dry fitted
IMG_30401.jpg IMG_30421.jpg

Here you can see the situation in comparison with the drawings of Jean Boudriot with the planking
IMG_30461.jpg IMG_30471.jpg

The small and detailed chiseling works I did with these chisels from Hasegawa.......highly recommended, very light and sharp


Uwek

Well-Known Member
Staff member
Moderator
Joined
Dec 25, 2017
Messages
2,778
Points
113

Location
Vienna, Austria
due to the (positive) fact, that we (my admiral and myself) made a holiday trip, I made no real progress on my model in the last days.
Yesterday evening it was the first time working on my La Salamandre kit after one week of abstinence.......
So some small progress on the stern construction I am able to show

So in moment frame 44 is fixed towards the sternpost and the two lowest fashion pieces also, these elements are fitting well.
Final sanding will be as mentioned already in previous posts later, when all elements of the stern are fixed with glue.
Yesterday I preliminary shaped the two elements under the frame 44 and 45. Sorry I forgot to make a photo of the original block before the shaping.

IMG_31561.jpg IMG_31571.jpg

Here you can see these shaped wooden pieces temporary fixed on both sides of the stern-post
IMG_31581.jpg IMG_31591.jpg

With these works, it is finally clear, that such a kit is definitely not only fixxing of prepared parts, It is still a lot of scratch building works involved, with shaping, sanding and measuring.......so in the meantime I see this kit different -> and this makes a lot of fun and it is a great experience for following models, either kits or pure scratch builts....

In the gap between the fixed frame 44 and the two fixed fashion pieces the special formed frame 45 has to be installed.
In moment I am shaping the two upper fashion pieces in such a way, that they have a good fitting on one side towards the stern post and on the other side to the frame 45......this will be shown in the next post coming soon.

Thanks for your interest.......to be continued......


Uwek

Well-Known Member
Staff member
Moderator
Joined
Dec 25, 2017
Messages
2,778
Points
113

Location
Vienna, Austria
some small progress on the stern elements.....

During dryfitting of the fashion pieces at the stern I realized, that the third fashion piece has some gap on both sides towards the frame 45, when it is installed correctly at the stern post. Due to the fact, that at the sternpost this element has to be correct for the later planking I had to scarf it up with some wood from scrap.
In the following photo you can see the two sides adjusted with a 1,5mm timber

after sanding it to the correct shape all 4 fashion pieces are fitting well, so no objections any more to glue finally the elements

here you can see the fitting of the elements - no or only minimum gaps - clearly visible are the adjustments at fashion piece No. three

IMG_31631.jpg IMG_31641.jpg

Thanks for your interest ...... to be continued ......


Uwek

Well-Known Member
Staff member
Moderator
Joined
Dec 25, 2017
Messages
2,778
Points
113

Location
Vienna, Austria
Some small more progress on the building of the La Salamandre I can show here in the log.

I fixed the two shaped timbers towards the sternpost and preliminary sanded everything, so that it is fitting in the jig.
Two things learned:
1) Do not use so much wooden glue, afterwards you have a lot of work to remove it where not necessary
2) To install the stern construction outside the jig was definitely working well, so do not fix the keel and sternpost too early in the jig.

IMG_31661.jpg IMG_31671.jpg


Final detailed sanding planned after the hull is finished and outside of the jig......

Also the 7+1 hawse timbers were fixed and glued together (had to add one additional level to reach finaly the height, similar to @ADC in his log).
Sanding to get the outside form will be the next task.......

IMG_31701.jpg IMG_31711.jpg


Uwek

Well-Known Member
Staff member
Moderator
Joined
Dec 25, 2017
Messages
2,778
Points
113

Location
Vienna, Austria
Looking excellent. The stern appears better than mine. This is the most tricky bit so far.
Many Thanks for visiting my log and your kind words......I hope, that all parts of the ship, which I am preparing separate will fit at the end......
