Long time ago I built the section model of the HMS Triton, a 28 gun sixth rate frigate from 1771.
I was asked to show this built here in a log. Due to the fact, that it is already 10 years ago, when I made this crossection I will mainly show the old photos with a reduced text.

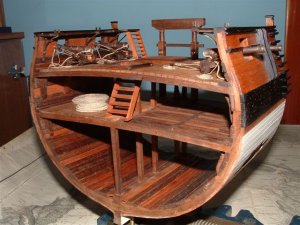

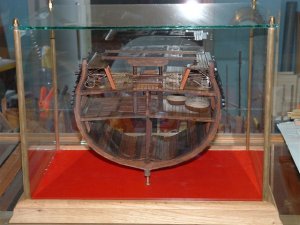

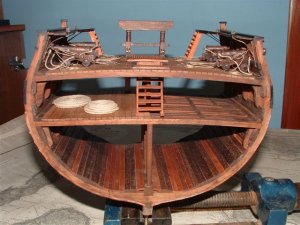

First of all I want to show the final result, so you can imagine what you could expect

130 DSCF0004.JPG
127 DSCF0001.JPG
141 DSCF0015.JPG

BTW:
The section model is shown also in my Avatar


Uwek

Well-Known Member
Staff member
Moderator
Joined
Dec 25, 2017
Messages
2,687
Points
113

Location
Vienna, Austria
#2
Now the start of the modelling.....first of all I want to show the jig, in which the frames can be installed.

01 DSCF0066.JPG

In my log of the La Salamandre i showed already a lot of frames, so here only the photo of the frames prepared
02 DSCF0067.JPG

The keel in cross section, visible is also the false keel and the rabbet for the later planking
03 DSCF0068.JPG

The first frame installed in the jig and fixed
04 DSCF0069.JPG
05 DSCF0070.JPG


Uwek

Well-Known Member
Staff member
Moderator
Joined
Dec 25, 2017
Messages
2,687
Points
113

Location
Vienna, Austria
#7
The limber strakes are installed left and right of the keelson. on top of this later on the limber boards will lay on

11 DSCF0084.JPG

Following the first ceiling boards

12 DSCF0085.JPG
13 DSCF0086.JPG

and on a heigher level the so called Inside Bilge stringers or "thick stuff"

14 DSCF0087.JPG

you can see the used nailing.......


Uwek

Well-Known Member
Staff member
Moderator
Joined
Dec 25, 2017
Messages
2,687
Points
113

Location
Vienna, Austria
#8
The ceiling of the Main Hold is mostly finished, and the recesses / pockets for the Hold Pillars are prepared (made with a small chissel)
Remark: The nailing looks because of the flash very dominant, in reality it looked way better....

15 DSCF0001.JPG

The rectangular Hold Pillars

16 DSCF0002.JPG

Installed in place (dry fit and waiting for the Lower Deck Beams)

17 DSCF0003.JPG


Uwek

Well-Known Member
Staff member
Moderator
Joined
Dec 25, 2017
Messages
2,687
Points
113

Location
Vienna, Austria
#16
Once more many thanks for your comments and the likes I received for this log.

With the following photos you can see the deck planking of the gun deck as wall the inner wall planking

40 DSCF0010.JPG

38 DSCF0008.JPG

Only half of the deck was planked, so it is possible to see the structure with the beams etc.

Here a view of the other side without deckplanking

41 DSCF0011.JPG
