H.M.S Enterprise plank on frame CAF Models 1/48.

Brian077

Well-Known Member
Joined
Jul 9, 2016
Messages
487
Points
63

Location
Melbourne Australia
#1
Hello friends,
I spotted this kit on ebay about 6 months ago and it instantly grabbed my attention. I was considering another plank on frame model after my wonderful experience with the plank on frame Xebec model which is almost finished.

I was considering the Swan/ Naiad/ Warrior practicums and have the publications,but the thought of hundreds of hours cutting frames didn't appeal to me due to time restraints.

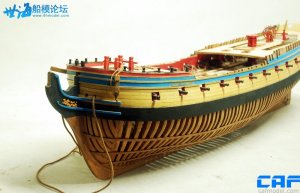

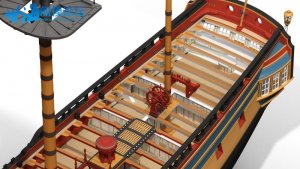

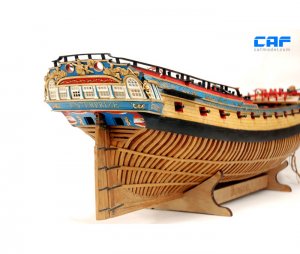

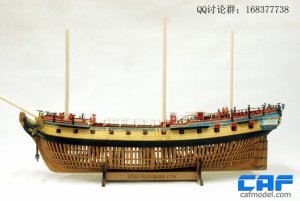

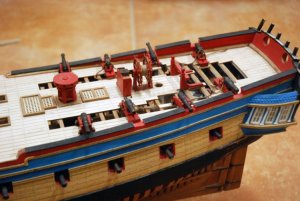

What could be better than a full plank on frame English 28 gun 6th rate ship all laser cut with Cherry ? The kit is by CAF models, a Chinese manufacturer and comes in 6 separate boxes. tb2icj5bnvzqebjszfaxxaf9vxa22670794.jpg post-142-0-61603100-1363720011thumb.jpg dsc2720jpgthumb.jpg dsc2599jpgthumb.jpg dsc2248.jpg


Brian077

Well-Known Member
Joined
Jul 9, 2016
Messages
487
Points
63

Location
Melbourne Australia
#2
I had seen the price on ebay and I contacted ZHL models and asked Max if he could source it for me at a cheaper price. I Also felt more comfortable buying from that company as I have purchased there before and have the assurance of payal. So I got a better price and the 6 boxes arrived 10 days later.

Photo below is a few of the boxes under my bench. IMG_2372.JPG


Brian077

Well-Known Member
Joined
Jul 9, 2016
Messages
487
Points
63

Location
Melbourne Australia
#4
Did I mention its plank on frame ? Well I am going to be busy for a long time.

The frames a beautifully laser cut from solid cherry. They are made up in double and triple laminations, so theres hundreds of pieces to glue together. IMG_2366.JPG


Brian077

Well-Known Member
Joined
Jul 9, 2016
Messages
487
Points
63

Location
Melbourne Australia
#8
One thing I would say right from the start, is that most Chinese kits have virtually no instructions.

So apart from plans and a few assembly diagrams, you are on your own to figure it out.

. IMG_2385.JPG


zoly99sask

Well-Known Member
Staff member
Administrative
Moderator
Joined
Apr 13, 2015
Messages
1,070
Points
113

#9
This is amazing ,another build to whatch on my crowded list.

Joined
Sep 20, 2017
Messages
32
Points
8

#10
Hi Brian

Looks like another excellent kit from China.

You will have years of enjoyment building her.

The wood looks like it is first class.

I will pull up a chair and enjoy your build as I have with the other build.

Keep up the good work.


John.


paulv1958

Active Member
Joined
Jul 7, 2015
Messages
205
Points
28

Location
Melb, Australia
#13
Hi Brian

Awsome kit.

I see the translation is up to standard. Looks a lot like lego instructions! Just grinding, grinding... Try to mix...
Nice wood!

Paul


Maarten

Well-Known Member
Joined
Sep 10, 2017
Messages
195
Points
63

Location
The Netherlands
#14
Hi Brian,

I will definately follow your build, this model is also on my short list. They have a new model out now from the HMS Bellona, unfortunately not full plank on frame but also very detailed. Can Max suply every model from China available at request? I am currently building ZHL Royal Caroline purchased via Max.

Ship model kit building made a hudge step forward since the Chinese are on the market with their own develloped models intead of plain copies. This is promissing a lot for the future.

Lots of succes with this really beautiful model.

Maarten


Brian077

Well-Known Member
Joined
Jul 9, 2016
Messages
487
Points
63

Location
Melbourne Australia
#15
Thanks for the comments guys.

Maarten, I did enquire about the H.M.S Bellona with ZHL and Max said not to buy it yet as theres only three stages available at the moment and the other three stages will be some time away. Also at 1/48 scale its too big for my limited space. But agree with with your comments, the Chinese are leaving everyone else behind in their development and manufacturing of high quality models.


Brian077

Well-Known Member
Joined
Jul 9, 2016
Messages
487
Points
63

Location
Melbourne Australia
#16
Been rather excited about this kit and its been a most enjoyable build so far. All the laser cut parts are sharp and perfectly fitting.

So I have assembled the building board and laid down the keel and assembled the stem.

. IMG_2386.JPG


Brian077

Well-Known Member
Joined
Jul 9, 2016
Messages
487
Points
63

Location
Melbourne Australia
#17
Heres a few close up photos.
The first picture is the stem assembly with thin black paper glued between the joins to show up the caulking. It has not been fine sanded yet.

The second picture is a close up of the keel with scarf joins and a rabbet cutout for receiving the planking. The numbers on the keel will be covered over with the ribs and not showing after assembly.

. IMG_2387.JPG IMG_2388.JPG


zoly99sask

Well-Known Member
Staff member
Administrative
Moderator
Joined
Apr 13, 2015
Messages
1,070
Points
113

#18
Hello Brian,I can feel that this one going to be an awesome build too.


Brian077

Well-Known Member
Joined
Jul 9, 2016
Messages
487
Points
63

Location
Melbourne Australia
#19
Been busy today, and glued up a few more parts.

This is the stern deadwood assembly under construction with black paper caulking between the joints. i will sandpaper and clean it up when the glue dries.

These small pincher clamps from Micro Mark are wonderful for holding odd shaped parts in place until it dries.

. IMG_2391.JPG
