Currently 2/3 through a scratch build diorama. Because I am new to modelling it has taken a long time to get this far.
I have many photographs to download, so they will be posted on a daily basis until they catch up to where I am at with the project.

Last year, the Ballina Naval and Maritime Museum (NSW, Australia) acquired the original console (1964) for the nearby Wardell Lift-Span Bridge.
The museum has been looking for ways to start introducing interactive displays, and the console became its first candidate. They wanted the console to operate a model bridge (which they did not have). To cut the long story short, they got me to convert the console, scratch build the Wardell Bridge, build a boat to traverse under the bridge, and set it all in a 4 x 8 foot diorama.

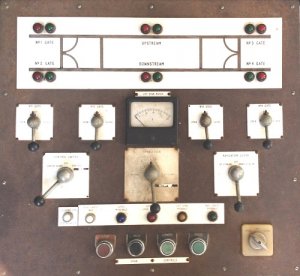

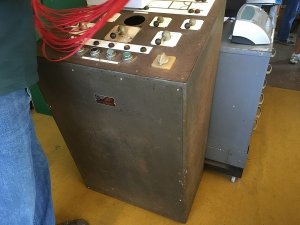

control panel_600.jpg

500 x 460px or 25 x 23 inch scale.jpg

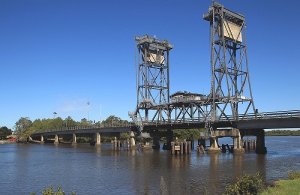

0_Wardell Lift-Span Bridge-600.jpg


Swabbie

Well-Known Member
Joined
Jan 28, 2018
Messages
423
Points
93

Location
Australia
#4
Thank you @Brian077 and @zoly99sask for your 'likes'; and @Donnie and @Uwek for your expression of interest. I hope I won't disappoint.
_________________________________
Here are my proposed display layout plans. The display table top has to rest on a steel frame of set height.

basic bridge display plan_800.jpg

bridge display idea_sml.png
The boat has a vane which goes through the table. A pulley system, under the table, will drive the boat forward and back.
The boat will be symmetrical so that it will not appear to be reversing.

I spent about a month designing and drawing up the plans. Below is a montage of several drawings.

Bridge plans-sml.png
Above, you can see there is a control box under the display table in line with the bridge. It is in here that I plan to install a pulley and cable system for both the bridge and the traversing boat.

Below is the layout for the pulley cable systems.
The counterweights are not needed for this system, so they are false (balsa). I am relying on the span weight, and gravity, to lower it back to the road.
Motor cabling amended.jpg

For those unfamiliar with a lift-span bridge operation.
Wardell Bridge anigif 1.gif


Uwek

Well-Known Member
Staff member
Moderator
Joined
Dec 25, 2017
Messages
2,704
Points
113

Location
Vienna, Austria
#5
Wow....very interestinmg your description of the preparation works of this diorama.
Especially I am also interested, due to the fact, that I am civil engineer (originally for bridge construction) and very interested also in old constructions like this one.
My company I am working for (I hope this is allowed to mention here) built some years ago the Botlek bridge in Rotterdam......
For these kind of bridges you have realy solve a lot of special problems with hydraulic and lifting devices / cables etc.
I guess also in a diorama several special problems you have to solve.....very interesting subject.....I cross all my fingers
For the firends which are interested of the Botlek bridge a short description:
http://www.strabag-international.co...Openagent&id=C048CECFA50607C0C125811B00353D90


Swabbie

Well-Known Member
Joined
Jan 28, 2018
Messages
423
Points
93

Location
Australia
#9
Wow....very interestinmg your description of the preparation works of this diorama.
Especially I am also interested, due to the fact, that I am civil engineer (originally for bridge construction) and very interested also in old constructions like this one.
My company I am working for (I hope this is allowed to mention here) built some years ago the Botlek bridge in Rotterdam......
For these kind of bridges you have realy solve a lot of special problems with hydraulic and lifting devices / cables etc.
I guess also in a diorama several special problems you have to solve.....very interesting subject.....I cross all my fingers
For the firends which are interested of the Botlek bridge a short description:
http://www.strabag-international.co...Openagent&id=C048CECFA50607C0C125811B00353D90
Thank you Uwek for your interest, but don't get too critical with that engineering eye of yours, I am a swabbie pirate with one eye (just joking).
Thanks for the very interesting video. Those tugs done a great job maneuvering the span into place. Great engineering success in building that huge bridge. You must feel proud to belong to such a prestigious company.


Swabbie

Well-Known Member
Joined
Jan 28, 2018
Messages
423
Points
93

Location
Australia
#11
Wow, thanks for all your 'likes' and responses.
________________________________________________
Had a look into the console, and working out how to decipher the switch contacts in situ. It soon became obvious that the wiring harness would need to be unraveled to reroute and replace most of the wires. I decided it would be easier to start from scratch. That is, replace the harness with my own.

2_Bridge Model update_ Stripping Wiring Harness.jpg

1_Bridge Model update_Control panel basics.jpg

Example of deciphering the switch contacts.
CONTROL SWITCH connections.jpg

TRAFFIC LIGHTS CONTROL SWITCH.png


Swabbie

Well-Known Member
Joined
Jan 28, 2018
Messages
423
Points
93

Location
Australia
#13
Thanks @neptune John for looking in... love the Emu.
_________________________________________________________
The museum workshop is too small to also include this display, so I am building it at home. I have no garage. It will have to take up my lounge-dining room in the unit. Once the timber arrived, I marked it all out, cut all the lengths and assembled the display table and its control box. The box is set aside for after the display table is sort of finished. I will then add the cable systems and electronics. Both table and box won't fit through the door. They will have to be assembled at the museum.

3_Bridge Model update_display table.jpg
The line across the table top is a 3 mm gap for guiding the boat under the bridge.

4_Bridge Model update_working compartment Box.jpg
The two doors are for accessing the control motors, cables, and various electronics.


Swabbie

Well-Known Member
Joined
Jan 28, 2018
Messages
423
Points
93

Location
Australia
#14
The first thing I build when doing an electronic project is the Power Supply Unit (PSU). All other circuits can be designed, powered and tested from the PSU. This unit will have the following voltages; 24, 12, and 5, capable of handling 2 amperes each. I have included a spare voltage circuit in case I might need it. That is, if the 12 volt motors draw too much current, I'll have to add another 12 volt 2 ampere source.



Used heatsinks from old computer PSUs.



Testing to PSU outputs.



Swabbie

Well-Known Member
Joined
Jan 28, 2018
Messages
423
Points
93

Location
Australia
#17
Thank you Hrvoje, mrshanks, and Dave for your 'likes', and kind responses.
_________________________________________________________
Going back to the table, I marked out where the pier and footing centres will be. Drilled holes for installing 3 mm bamboo skewers for doweling.
Cut and shaped the footings from scarp timber. Drilled their centres and glued them over the dowels and onto the table.



Used wood putty around the footings to eliminate and shadow line. Did not want the footings to appear as if floating on the water.
Added piers and their crossbeams. Each set has its own height so to make the bridge curve/arch over the river.



Then added the girders. The centre photos show where Bridge Street will go under the bridge.





Swabbie

Well-Known Member
Joined
Jan 28, 2018
Messages
423
Points
93

Location
Australia
#19
Then I added the bulkheads, checking that they are glued at 90 deg to keel.
The outside cabin walls were cut and glued with supporting strips as well.



The boat will need to be cut near the waterline to make it appear as if in water for the diorama. The boat will have running navigation lights and its own power supply (9V rechargeable battery). I needed room for the battery. So I added another 3 mm (using long matchsticks) to the bulkheads to raise the deck.



Swabbie

Well-Known Member
Joined
Jan 28, 2018
Messages
423
Points
93

Location
Australia
#20
Got the hacksaw blade out and cut off the bottom half of boat. Then laid out a sheet of sandpaper and gently sanded in circular pattern. I stopped when all edge surfaces, of last plank, got touched by the sandpaper.



Had previously painted 1/72 scale plastic figurines for the Bridge and Boat Diorama.
Painted two to look at if they belong on the boat as Captains. They are both in the two bridge sections above.
