17th Century Naval Cannon - 1:12 scale - by DocBlake

DocBlake

Well-Known Member
Joined
Jan 24, 2015
Messages
628
Points
93

Location
Pewaukee, Wisconsin
#21

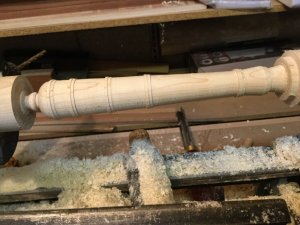

I added some detail to the reinforcing rings. On to final sanding and drilling the bore and trunnion hold. I plan to stain the cannon rather than paint it to preserve the detail in the reinforcing rings and cascabel.

Greg: Ebony is tough to work with, including turning. At the price it's at one can't afford mistakes! Stained maple will have to do, Img_0912.jpg


epicdoom

Well-Known Member
Joined
Aug 4, 2018
Messages
711
Points
93

Location
Baltimore, Maryland USA
#24
Flawless you do some amazing work My Brother. Have you tried the Tamiya paints they are water thin alcohol based so they go on without covering details they seep into the wood nicely and I rarely ever need more then one coat. I use the XF-1 paint from them and its all I use anymore.


DocBlake

Well-Known Member
Joined
Jan 24, 2015
Messages
628
Points
93

Location
Pewaukee, Wisconsin
#25
Thanks, Joe! I have used Tamiya paints. They are really nice.

So I used the lathe and fine sandpaper to smooth the canon. The final polishing is done with handfuls of wood shavings pressed against the turning barrel to use "wood to polish wood". The technique works really well. I then had to decide how to blacken my maple cannon. Three choices: Paint, stain or dye. In the end, I chose Solar-Lux Jet Black wood dye made by Behlen. It's alcohol based, dries quickly, penetrates into the wood fibers, doesn't raise the grain and won't obscure the detail on the reinforcing rings and the cascabel. It turned out well.

Obviously I'll need to protect the dyed cannon. When we blacken brass cannons chemically, the resulting gun has a bit of a sheen to it. The cannons were cast, so would have been flat black in color. The "sheen" doesn't look bad in my opinion, though. So what do you think? Flat/matte poly, or semi-gloss/satin poly for a little sheen?

black0.JPG black1.JPG black2.JPG black3.JPG black4.JPG


ron0909

Well-Known Member
Joined
Jul 8, 2018
Messages
99
Points
53

Location
Ottawa, Canada
#29
Sorry to jump in so late but needed to say how much I enjoyed watching your cannon come to life! Now for my 2 cents..I like the idea of a rubbed in satin
urethane. Just out of curiosity, could a bees wax or some similar substance be rubbed on the areas that would have been worn or handled more in real life?
Thanks for taking us along to the foundry!

Ron


DocBlake

Well-Known Member
Joined
Jan 24, 2015
Messages
628
Points
93

Location
Pewaukee, Wisconsin
#31
I've seen photos of your model, Mike and read your build log. Very nice job!

I opted to finish the cannon with satin wipe on poly. In deciding how to present the final model, I knew I wanted a little more than just a slab of wood, but I wasn't prepared to build a whole battle station section at 1/12 scale! I opted for a section of decking. I found a walnut cutoff in the shop and rounded the edges. I then glued 2 long parallel pieces of beech (1" X 5/8"0 to represent the deck beams. Then I added the two short cross pieces representing the carlings. The deck will be planked with 1/2" X 3/16" maple. Once the deck is planked, I'll add the ledges between the deck beams. base1.JPG


Uwek

Well-Known Member
Staff member
Moderator
Joined
Dec 25, 2017
Messages
3,849
Points
113

Location
Vienna, Austria
#34
The timber for the planks is really looking authentic, very realistic in grain-size and colour.......
Are you planing to make some butt joints also?


DocBlake

Well-Known Member
Joined
Jan 24, 2015
Messages
628
Points
93

Location
Pewaukee, Wisconsin
#35
Thanks, Uwe! Since the deck section has only two deck beams, there are no butt joints.

I finished the base. It is really a stylized section of decking to mount the gun on. There are black bolts in the deck beams sides that are not historically accurate - just there for visual interest. The carlings aren't visible but you can see the ends of the ledges. Once I attach the metalwork to the cannon, and mount the cannon on the deck piece I'm done!

Img_0296.jpg Img_0298.jpg Img_0300.jpg Img_0302.jpg


DocBlake

Well-Known Member
Joined
Jan 24, 2015
Messages
628
Points
93

Location
Pewaukee, Wisconsin
#39
Thanks, guys!
I'm thinking about adding a few things to the display, like gun tools, a bucket and small barrel, a rope coil and maybe some cannon balls. Not too much clutter, just a little more interest. It's what I did on my first battle station model (18th century, 1:24 scale). bs1.jpg bs2.jpg bs3.jpg
