#81
Thanks, guys, for your interest!

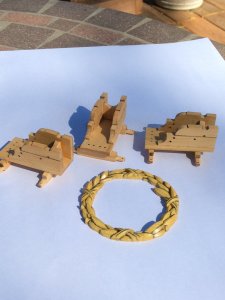

I spent yesterday assembling the main parts of the gun carriages. One of us (Don) noticed a problem with the fit of the quoins and getting proper elevation of the gun's barrel. I'll make a mockup of the stool bed and alter it such that the quoin fits.
The carriages are boxwood and the wreath is yellowheart. I used a pencil to darken the recesses of the wreath to give more of a "3-D" effect, as Mike demonstrated. The yellowheart is a nice approximation of gold as is the osage orange. Img_0255.jpg


DocBlake

Well-Known Member
Joined
Jan 24, 2015
Messages
602
Points
93

Location
Pewaukee, Wisconsin
#86
I'm working on my cannons. I've posted Jeff Staudt's plans for the carriages and you notice that there are two rings attached to the brackets. One is for the breeching line and the other is to hook on the gun carriage tackle . I can't find another example of guns being rigged like that. I think I'l just eliminate the aft-most ring, and orient the eyebolt horizontally, like it's done on virtually every other carriage I've seen. staudt gun.jpg


DocBlake

Well-Known Member
Joined
Jan 24, 2015
Messages
602
Points
93

Location
Pewaukee, Wisconsin
#87
I assembled all the carriages. I did make some modifications. I lowered the stool bed and it's support so that the quoins would fit properly. I also made new transoms that extend down to the carriage base, for ease of construction. Here's some shots of one of the long cannons with one coat of poly on it. No cap squares yet!
IMG_0259.JPG IMG_0262.JPG IMG_0263.JPG IMG_0264.JPG


DocBlake

Well-Known Member
Joined
Jan 24, 2015
Messages
602
Points
93

Location
Pewaukee, Wisconsin
#89
Thanks Winston! By the way: Have you guys found Gene Bodnar's "Fubbs" practicum over at MSB yet???
Except for the gun port lids all the parts have been fabricated. Obviously the upper bulwark planking is not yet installed. Now the model has to be assembled. The gun deck must be completed before the upper deck is installed because of the tight quarters below. Rigging the guns would be impossible. Here's a preview of the model



a1.JPG a2.JPG a4.JPG a5.JPG a6.JPG
.


Canoe21

Lawrence
Joined
Mar 31, 2017
Messages
516
Points
63

Location
Sutton. Ontario, Canada
#92
Hello Dave
I have been lurking in the background for some time now, great job on your cannons and charges they look just great and very well done. I have a question for you if you would be so kind to answer. I have read that medical; injection needles can be very easily to make treenails. I have tried a couple of times to buy some but am very confused as to the way they are listed. One fellow says that a grey tipped needle will cut a 0.8 treenail and that a green one will cut a 0.6 treenail. I did get a brownish tipped one from the vet yesterday but the outside dimensions are only 0.7 mm making it too small for treenails for my 1:48 scale Oliver Cromwell. I again tried at our drug store and not knowing just how these needles are labeled I purchased a pack of 8 mm needles but this turned out to be the length of the needle that has a 30 G needle I presume.

My question is, could you recommend an appropriate size and name of such needles and where they can be purchased. This system looks so easy and fast that I do want to give it a try. Sorry for taking you away from your build but you seem to be the most appropriate person to ask, ENJOY.

Regards Lawrence


DocBlake

Well-Known Member
Joined
Jan 24, 2015
Messages
602
Points
93

Location
Pewaukee, Wisconsin
#93
Thanks Lawrence.

Treenails are about 1-1/4" in diameter. In 1:48 scale this is just a bit under 1/32". A 20 gauge needle is 0.9mm outside diameter and would be just about the right size. These needles have a yellow hub, and you can easily find them on the internet. Becton-Dickinson is a major producer. ava-hypodermic-needle_table.jpg

Joined
Jan 4, 2017
Messages
95
Points
18

Location
Clinton, Ontario, Canada
#96
Sadly Dave, the Gene's Fubbs practicum has gone missing. I checked all my backups and have not found a copy of it. I could have it burned to a CD somewhere but to date, nothing.

Nice job on the model by the way.
