1/48 scale Launch, plank on frame, by neptune

neptune

Well-Known Member
Joined
May 25, 2017
Messages
815
Points
93

Location
Australia.
#21
And now I am going to Hijack my own log and show you how I normally build my small boats, some of you maybe
interested,

First of all i carve a wooden plug to the inside dimensions of the boats frames, with a channel cut out through the
middle and up the stem that will take the keelson and apron, I also nail a metal band around the plug just above
where the frame tops will be cut off, the band has to be the thickness of the frames away from the plug, the frame
ends tuck into this band to secure them.

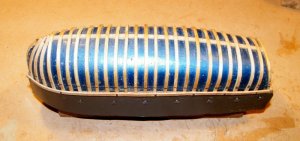

This photo shows the plug with the apron running down the bow and going along the keel as a keelson to meet up
with the transom.and then the ribs going over the plugand then down inside the metal band, finally there is a small
strip of timber going along the tops of the frames to hold them in place, you can see the cut off line marked around
the timbers just below the metal band, any questions just ask,

another view, this is a 1/48 scale 32 foot launch from the drawings by Underhill,

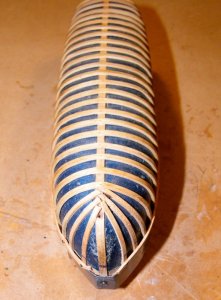

view from the stern,

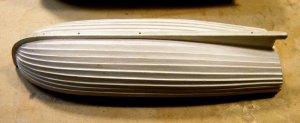

The shell of the launch after planking,

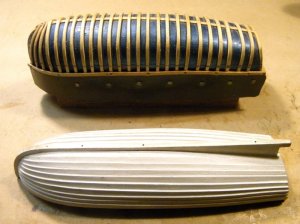

One in frame and one in shell,

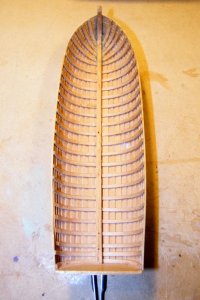

inside view,

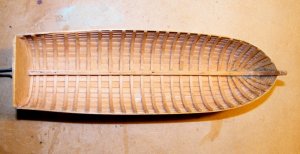

another inside view,


neptune

Well-Known Member
Joined
May 25, 2017
Messages
815
Points
93

Location
Australia.
#22
Some different plugs That I have made over the years,

a small cutter,

another view of the cutter,

a double ended whale boat,

This is a shell of a pinnace, all these boats are from Underhill's drawings to a scale of 1/48,

overhead view,



exterior view along the pinnace,

and an internal view,


Peglegreg

Well-Known Member
Staff member
Moderator
Joined
Jul 30, 2017
Messages
1,245
Points
113

Location
Central Coast NSW
#24
G'day John
Looking great. The thickness of the planks, are they about 0.5mm or what?
How did you bend the the last 2 at the stern? Steam and hot iron?
Happymodeling
Greg


neptune

Well-Known Member
Joined
May 25, 2017
Messages
815
Points
93

Location
Australia.
#31
These next set of pics show the finish of the planking on the starboard side of the boat,



This shows how I curved the plank ends to help fit them to the frames,I used the Amati plank bender shown and
bent both ends of the plank for approx 25mm, no hot water was used in the planking at all,

Fore end,

aft end,

Now a little tale of caution, you can see the fifth plank is too short, that's my fault, I had accidentally used plank 6
instead of plank 5, I had cut both planks free from the sheet of wood and mistakenly picked up the wrong plank,
it wasn't as short as this but I had to square the end to sit on a frame, lucky for me both planks had almost the
same shape and with a little bit of trimming I was able to overcome the mistake I had made,

The finished planking on this side, it hasn't been stained or varnished yet, just had a wipe over with a damp rag
to show the planking a little better, I'm pleased with it apart from the piece I had to add,


neptune

Well-Known Member
Joined
May 25, 2017
Messages
815
Points
93

Location
Australia.
#35
A couple of pics with the wash boards and row locks attached, also two of the six oars, the top one has been
rounded, i round all the handles with fine sand paper before shaping the blades,

another view

the lower oar is how they are supplied, and the top one being shaped,

This is how I shape them, first I cut the curve into the front of the oar with a small scalpel blade, and finish it off
with fine sand paper,

another view,

then I cut and sand the back of the oar to shape and finish with fine sand paper, that's my finger supporting
the blade,

Another view,

The six oars after shaping,

and another view, they have to have a band attached across the bottom of the dlades yet and also a coat of
varnish,
